Spectrum of Platinum homepage

Lines and intensities in the range 1744-1760 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1744.17      57333.9        150
  1744.2756    57330.39       290     Ne II                  C
  1744.4305    57325.299    15000     Pt I       775- 58101  N
  1745.6949    57283.779      490     Pt II    21168- 78452  K
  1745.8874    57277.463     3000     Pt I       823- 58101  N
  1746.4563    57258.805     5600     Pt I      6567- 63826  N
  1746.77      57248.5        190
  1747.1795    57235.104     4600     Pt II    15791- 73026  06
  1747.64      57220.0         59
  1747.9003    57211.500       80     Pt I       775- 57987  D
  1748.9496    57177.177     3700     Pt II    42031- 99209  K
  1749.26      57167.0        270
  1750.70      57120.0         52
  1751.2164    57103.17       380     Ne II                  C
  1751.7022    57087.331     4500     Pt II    18097- 75184  A
  1751.7022    57087.331     4500     Ne II                  A
  1752.10      57074.4        130
  1752.8546    57049.796     2500     Pt II    13329- 70379  08
  1753.2526    57036.847     9200     Pt II    42031- 99068  K
  1753.54      57027.5        300
  1753.8286    57018.115    48000     Pt II        0- 57018  A
  1753.8286    57018.115    48000     Pt II    24879- 81897  AK
  1754.47      56997.3        110
  1754.9114    56982.935      480     Pt II    23875- 80858  12
  1755.19      56973.9        110
  1755.8673    56951.912      390     Pt II    37877- 94829  K
  1756.0182    56947.018      370     Pt II    54373-111320  K
  1756.2086    56940.845     1700     Pt II    16820- 73761  07
  1756.3952    56934.795     4000     Pt II    53749-110684  K
  1756.5046    56931.247     2600     Pt II     8419- 65351  07
  1756.6264    56927.301     1100     Pt I      6140- 63067  N
  1756.8363    56920.50      1200     Ne II                  C
  1757.5047    56898.852     1200     Pt I      6567- 63466  N
  1757.79      56889.6        140
  1758.1220    56878.874     8400     Pt II     4786- 61665  07
  1758.5549    56864.87      2000     Ne II                  C
  1758.77      56857.9         76     Pt II    32237- 89095  K
  1758.9451    56852.259     1100     Pt II    36484- 93336  12
  1759.42      56836.9        160
  1759.90      56821.4        150     Pt II    50564-107386  K
Character descriptor definitions (appear to right of intensity)
Code definitions

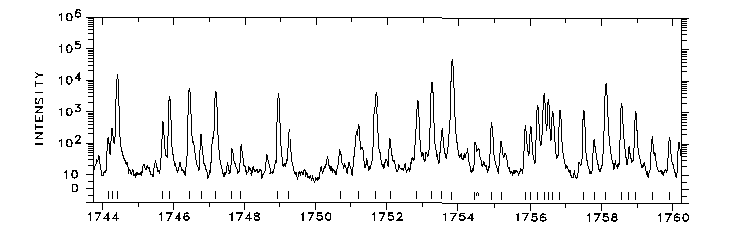

Photoelectric spectrum

1744-1760 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
