Spectrum of Platinum homepage

Lines and intensities in the range 1760-1776 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1760.16      56813.0        110
  1760.6896    56795.928      960 D   Pt I     10131- 66927  AN
  1760.6896    56795.928      960 D   Pt II    29030- 85826  AK
  1761.11      56782.4        120
  1761.38      56773.7        710
  1761.9446    56755.474     1700     Pt II    37877- 94633  K
  1762.4146    56740.338      680
  1762.5591    56735.686     3400 D   Pt II    23461- 80197  AK
  1762.5591    56735.686     3400 D   Pt II    21717- 78452  AK
  1762.7266    56730.295     1000     Pt I       775- 57506  D
  1763.27      56712.8         61
  1763.7269    56698.12       160     Ne II                  C
  1764.01      56689.0        210
  1764.2127    56682.509     2200     Pt I       823- 57506  D
  1764.5948    56670.234    21000     Pt I         0- 56670  N
  1764.84      56662.4        160
  1765.0132    56656.80       150     Ne II                  C
  1765.35      56646.0         72
  1765.8981    56628.41       810     Ne II                  C
  1766.0328    56624.090    10000     Pt II    13329- 69953  04
  1766.7883    56599.877     1700     Pt I      6567- 63167  N
  1766.95      56594.7        330     Pt II    21168- 77763  K
  1767.1612    56587.934    47000     Pt II        0- 56587  07
  1767.89      56564.6        280     Pt II    29261- 85826  K
  1768.0852    56558.36       120     Ne II                  C
  1768.31      56551.2         55
  1769.2416    56521.393      200     Pt II    18097- 74619  05
  1769.4841    56513.647     6600     Pt II    29261- 85775  K
  1769.9101    56500.045      730     Pt I      6567- 63067  N
  1770.0610    56495.228     5600     Pt II    43737-100232  K
  1770.68      56475.5        300
  1770.90      56468.5        110
  1771.03      56464.3        230
  1771.26      56457.0        110
  1771.4140    56452.077     1600
  1771.89      56436.9        130
  1772.0902    56430.536      290     Pt II    50564-106995  K
  1772.80      56407.9         65
  1774.0082    56369.525      830     Pt II    21168- 77538  K
  1774.5470    56352.410     4800     Pt II    41434- 97786  K
  1775.0160    56337.521    86000     Pt II     8419- 64757  07
Character descriptor definitions (appear to right of intensity)
Code definitions

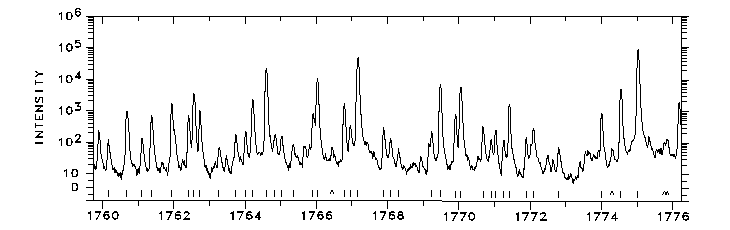

Photoelectric spectrum

1760-1776 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
