Spectrum of Platinum homepage

Lines and intensities in the range 1776-1792 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1776.1777    56300.673     1900     Pt I     10131- 66432  N
  1776.5571    56288.650    55000     Pt I         0- 56288  N
  1776.6141    56286.844      360 U
  1776.7088    56283.844     2500     Pt II    36484- 92767  K
  1777.0866    56271.879   230000     Pt II     4786- 61058  07
  1777.2783    56265.808    28000     Pt I       775- 57041  N
  1777.72      56251.8        480
  1778.2476    56235.139      490
  1778.7495    56219.27       270     Ne II                  C
  1778.85      56216.1        510
  1779.1858    56205.486     5500     Pt II    16820- 73026  06
  1779.2172    56204.493     5500     Pt II    24879- 81083  K
  1779.4723    56196.435     5700     Pt II    41434- 97630  K
  1780.11      56176.3        170
  1780.47      56164.9        210
  1780.7016    56157.640     1500     Pt II    15791- 71948  05
  1781.15      56143.5        290
  1781.8617    56121.077    93000     Pt II     4786- 60907  07
  1782.3858    56104.576      690
  1782.57      56098.8        280
  1783.1027    56082.019      340     Pt I     10116- 66198  N
  1783.7849    56060.57       200     Ne II                  C
  1784.24      56046.3        210     Pt II    21717- 77763  K
  1784.6257    56034.159      810     Pt II    48591-104625  K
  1784.8755    56026.317      790
  1785.8803    55994.795    13000     Pt II     9356- 65351  05
  1786.6480    55970.734    36000     Pt I       823- 56794  N
  1786.92      55962.2        180
  1787.17      55954.4        240
  1788.34      55917.8         70
  1788.85      55901.8        160
  1789.0922    55894.269     5800     Pt I       775- 56670  N
  1789.64      55877.2        100
  1789.78      55872.8        130
  1791.04      55833.5         45
  1791.44      55821.0        820     Pt II    21717- 77538  K
  1791.6462    55814.591      810
  1791.8624    55807.857      980     Pt II    23875- 79683  K
Character descriptor definitions (appear to right of intensity)
Code definitions

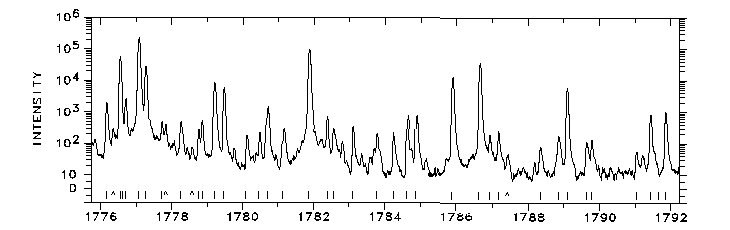

Photoelectric spectrum

1776-1792 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM
