Spectrum of Platinum homepage

Lines and intensities in the range 1792-1808 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1792.38      55791.7         72
  1792.7132    55781.371      400     Pt II   116689- 60907  K
  1792.8041    55778.543     1200     Pt II    53749-109528  K
  1793.37      55760.9        350     Pt II    42031- 97792  K
  1793.56      55755.0        660     Pt II    42031- 97786  K
  1793.75      55749.1        640     Pt II    41434- 97183  K
  1794.0655    55739.325     3300
  1794.1811    55735.734     7100     Pt I     10116- 65852  N
  1794.3043    55731.907     2600     Pt II    23875- 79607  10
  1794.58      55723.3         76     Pt II    58062-113785  K
  1794.75      55718.1        200     Pt I     10131- 65850  N
  1795.58      55692.3        160
  1795.91      55682.1        130
  1796.27      55670.9        290     Pt II    32918- 88589  K
  1796.4925    55664.024     3200     Pt II    18097- 73761  08
  1796.5171    55663.26       900 U   Ne II                  C
  1797.0175    55647.761     2800
  1797.1964    55642.22       240     Ne II                  C
  1797.39      55636.2        260
  1797.57      55630.7        180     Pt II    23461- 79092  AK
  1797.57      55630.7        180     Pt II   116689- 61058  AK
  1798.2814    55608.65      1900     Ne II                  C
  1798.44      55603.7        100
  1798.8757    55590.278      670
  1799.16      55581.5         71
  1799.37      55575.0        150
  1799.58      55568.5        730     Pt II    27255- 82824  K
  1799.6692    55565.767     1100     Pt I     10131- 65697  N
  1799.87      55559.6         72
  1800.5413    55538.854     1900     Pt I      6567- 62106  N
  1800.6249    55536.276      200     Pt I         0- 55536  D
  1800.7325    55532.96       620     Ne II                  C
  1800.9569    55526.037     1500     Pt II    34647- 90173  K
  1801.24      55517.3        170
  1801.9716    55494.770     2400     Pt I      6567- 62062  N
  1802.52      55477.9        400
  1802.9398    55464.969    31000     Pt I       823- 56288  N
  1803.1160    55459.55       350     Ne II                  C
  1803.7301    55440.67       690     Ne II                  C
  1804.21      55425.9         85
  1804.58      55414.6         59
  1804.84      55406.6         74
  1805.0193    55401.069     3200     Pt II     9356- 64757  05
  1805.70      55380.2        260     Pt II    54373-109753  K
  1806.39      55359.0        150
  1806.7624    55347.621     6100     Pt II    46046-101394  K
  1807.34      55329.9         88     Ne III                 L
  1807.6755    55319.663     2900     Pt II    37877- 93197  K
Character descriptor definitions (appear to right of intensity)
Code definitions

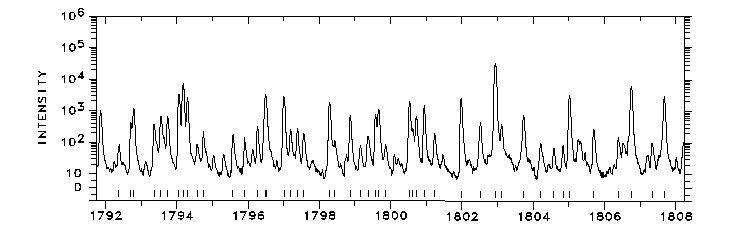

Photoelectric spectrum

1792-1808 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
