Spectrum of Platinum homepage

Lines and intensities in the range 1808-1824 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1808.22      55303.0         95
  1808.34      55299.3        110     Ne III                 L
  1808.5524    55292.842      870     Pt II    21168- 76461  09
  1808.84      55284.0         93     Ne III                 L
  1809.51      55263.6        150
  1809.84      55253.5        150
  1809.94      55250.5        350
  1810.13      55244.7        140     Ne III                 L
  1810.69      55227.6        800
  1811.0524    55216.514      990     Pt II    23875- 79092  AK
  1811.0524    55216.514      990     Pt II    34647- 89863  AK
  1811.88      55191.3        460     Pt II    32918- 88110  K
  1812.04      55186.4        670
  1812.23      55180.6        270     Ne III                 L
  1812.8819    55160.791    33000     Pt I       823- 55984  N
  1813.0791    55154.792      300     Pt II    54373-109528  K
  1813.1658    55152.154     3000     Pt II    29030- 84182  13
  1813.71      55135.6        120
  1814.23      55119.8        210
  1814.56      55109.8        220
  1815.6120    55077.847     5100     Pt I      6567- 61645  N
  1815.9818    55066.631     3600     Pt II    46046-101113  K
  1816.13      55062.1        260
  1816.9290    55037.925              Si II                  B
  1817.22      55029.1        340
  1817.45      55022.1         59
  1817.8736    55009.325    24000     Pt I         0- 55009  N
  1818.2536    54997.829      870
  1818.49      54990.7        500     Pt II    23461- 78452  K
  1819.4814    54960.715       59     Pt II    34647- 89607  15
  1820.35      54934.5        240     Pt II    54373-109307  K
  1820.68      54924.5        460
  1820.8082    54920.666     5500     Pt II    29261- 84182  13
  1821.34      54904.6        160
  1821.7330    54892.786     2700     Pt II    21717- 76610  05
  1821.8212    54890.129     4400     Pt II    37877- 92767  K
  1822.0375    54883.612     1700
  1822.33      54874.8        130
  1822.47      54870.6        590     Ne III                 L
  1822.55      54868.2        570     Ne III                 L
  1822.66      54864.9        340     Ne III                 L
  1822.75      54862.2        190     Ne III                 L
  1823.5129    54839.206     2600     Pt I         0- 54839  D
Character descriptor definitions (appear to right of intensity)
Code definitions

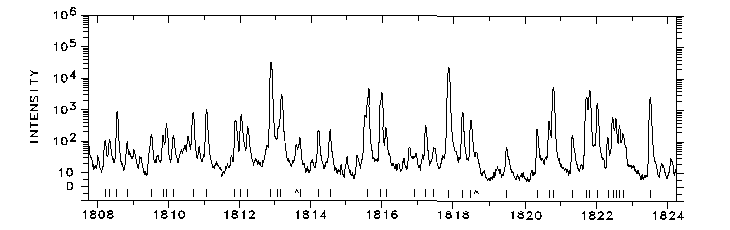

Photoelectric spectrum

1808-1824 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
