Spectrum of Platinum homepage

Lines and intensities in the range 1824-1840 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1824.56      54807.7        120
  1825.0397    54793.329      680     Pt II    23461- 78254  K
  1825.3262    54784.728    12000     Pt I      6567- 61352  N
  1826.1377    54760.384    20000     Pt I       775- 55536  D
  1826.2024    54758.443      700
  1826.5063    54749.332     7800     Pt II    46046-100795  K
  1826.8324    54739.56       910     Ne II                  C
  1827.34      54724.4         52
  1827.50      54719.6        170
  1827.7326    54712.599     2500     Pt I       823- 55536  D
  1828.39      54692.9         74
  1829.22      54668.1         70     Pt II   119057- 64388  K
  1830.71      54623.6        140
  1830.85      54619.4         45
  1831.93      54587.2        120
  1832.27      54577.1        420     Pt II    23875- 78452  K
  1832.8733    54559.145     1200     Pt I     10116- 64675  N
  1833.3875    54543.843    10000     Pt II    16820- 71364  K
  1833.66      54535.7        940
  1833.8527    54530.007     3200     Pt I      6567- 61097  N
  1833.9099    54528.31      1100     Ne II                  C
  1835.0745    54493.700    17000     Pt II    16820- 71314  05
  1835.2748    54487.753     1300     Pt I     10131- 64619  N
  1835.90      54469.2        240     Pt II    48591-103060  K
  1836.5075    54451.180    30000     Pt II    13329- 67780  K
  1836.8531    54440.936     3100     Pt I       775- 55216  D
  1837.04      54435.4        110
  1837.30      54427.7        130
  1837.42      54424.1         98
  1837.60      54418.8         95
  1837.8050    54412.738     8100     Pt II    21168- 75581  08
  1838.03      54406.1        660     Pt II    53749-108155  K
  1838.2682    54399.026      780     Pt I     10116- 64515  N
  1838.67      54387.1        380
  1838.7836    54383.779     1200     Pt I     10131- 64515  N
  1838.8246    54382.567    13000     Pt II     9356- 63738  05
  1838.9355    54379.286     4600     Pt II    23875- 78254  K
  1839.1994    54371.484     9600     Pt II    42031- 96403  K
  1839.5258    54361.836    31000     Pt II     8419- 62781  08
  1839.73      54355.8        570     Ne III                 L
Character descriptor definitions (appear to right of intensity)
Code definitions

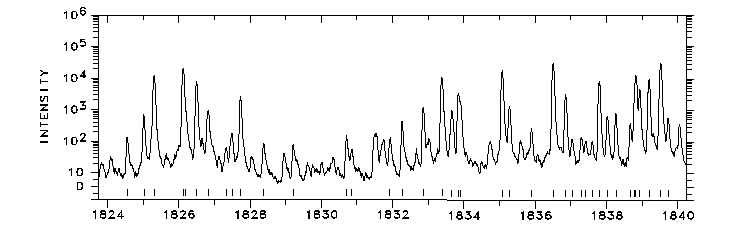

Photoelectric spectrum

1824-1840 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
