Spectrum of Platinum homepage

Lines and intensities in the range 1840-1856 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1840.05      54346.3        350
  1840.8825    54321.772     5200     Pt II    29030- 83352  14
  1840.99      54318.6        280
  1841.35      54308.0        100     Ne III                 L
  1841.60      54300.6        190     Ne III                 L
  1842.10      54285.9        500     Pt II    32918- 87204  AK
  1842.10      54285.9        500     Ne III                 AL
  1842.3413    54278.76       880     Ne II                  C
  1842.8889    54262.631      970     Pt II    36484- 90746  K
  1843.2224    54252.813     1100     Pt II    32237- 86489  K
  1843.38      54248.2        160
  1843.9105    54232.57      2300     Ne II                  C
  1844.73      54208.5        130
  1845.00      54200.5        120
  1845.5046    54185.722     1100     Pt I       823- 55009  N
  1845.7517    54178.468    34000     Pt I         0- 54178  N
  1845.9968    54171.28      2600     Ne II                  C
  1846.14      54167.1        450
  1846.3115    54162.041     1200     Pt II    15791- 69953  04
  1847.2454    54134.66       110     Ne II                  C
  1847.34      54131.9        200     Pt I     10116- 64248  N
  1847.64      54123.1         74     Pt II    41434- 95557  K
  1847.8453    54117.084     1300     Pt I     10131- 64248  N
  1848.07      54110.5        170     Ne III                 L
  1848.7609    54090.284      400     Pt II    29261- 83352  14
  1848.8229    54088.47      1300     Ne II                  C
  1849.2224    54076.784     1700     Pt II    23461- 77538  K
  1849.3784    54072.22      3200     Ne II                  C
  1849.6831    54063.314    20000     Pt I       775- 54839  D
  1850.2332    54047.241      770
  1850.77      54031.6         70
  1850.9260    54027.012      750     Pt II    24879- 78906  10
  1851.3195    54015.528      480     Pt I       823- 54839  D
  1851.4696    54011.150     2200     Pt I         0- 54011  D
  1852.09      53993.1         45     Ne III                 L
  1852.96      53967.7        130     Ne III                 L
  1853.1147    53963.20      1500     Ne II                  C
  1853.4523    53953.373    14000     Pt I         0- 53953  A
  1853.4523    53953.373    14000     Pt II   114861- 60907  K
  1853.61      53948.8        400     Pt II    54373-108322  K
  1853.83      53942.4        530     Pt II    34647- 88589  K
  1854.0403    53936.26      4600     Ne II                  C
  1854.84      53913.0         60     Ne III                 L
  1854.99      53908.6         84
  1855.12      53904.9         81
  1855.5230    53893.161     4000     Pt II    43737- 97630  K
Character descriptor definitions (appear to right of intensity)
Code definitions

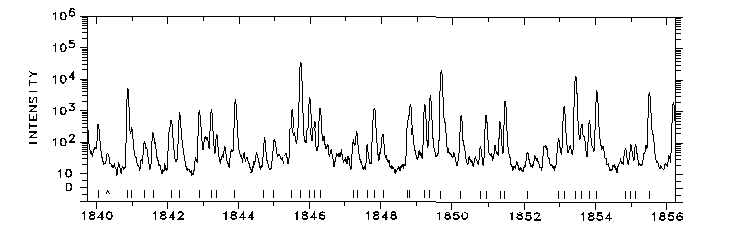

Photoelectric spectrum

1840-1856 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
