Spectrum of Platinum homepage

Lines and intensities in the range 1856-1872 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1856.1889    53873.827     2000     Pt I      6567- 60441  N
  1856.2935    53870.791     2700     Pt II   115060- 61190  AK
  1856.2935    53870.791     2700     Pt II   121651- 67780  AK
  1856.5220    53864.162      180     Pt II    21717- 75581  09
  1856.9688    53851.201     6000     Pt II    18097- 71948  06
  1857.4069    53838.499     3500     Pt II    53749-107588  K
  1857.5649    53833.92       320     Ne II                  C
  1857.9530    53822.68      1800     Ne II                  C
  1858.0389    53820.186      400     Pt II   110408- 56587  K
  1858.4108    53809.42      2300     Ne II                  C
  1859.03      53791.5        250
  1859.3605    53781.93      1800     Ne II                  C
  1860.0984    53760.597     1300     Pt I      6567- 60328  N
  1860.91      53737.2        510
  1861.00      53734.6        440
  1861.1355    53730.64       460     Ne II                  C
  1861.5815    53717.766      740
  1861.78      53712.0        180
  1862.9448    53678.456     1900     Pt II   105086- 51408  K
  1863.22      53670.5        420     Pt II   110258- 56587  K
  1863.4578    53663.678     2700 W   Pt II    54373-108037  K
  1863.8611    53652.067     1100     Pt I      6140- 59792  N
  1864.17      53643.2        510
  1864.5737    53631.562      740     Pt II   114539- 60907  K
  1864.7909    53625.315      770     Pt I     13496- 67121  N
  1864.90      53622.2        190
  1865.61      53601.8        190     Pt II   117340- 63738  K
  1865.89      53593.7         69
  1866.1542    53586.139     2000     Pt II    21168- 74754  10
  1866.41      53578.8        170
  1866.6789    53571.078      500 U   Pt II    32918- 86489  K
  1866.7078    53570.248     1800     Pt II   110158- 56587  K
  1867.1302    53558.129    30000     Pt II    16820- 70379  09
  1867.80      53538.9         82
  1868.14      53529.2         73
  1868.2555    53525.870      940     Pt II    42031- 95557  K
  1868.9754    53505.252     2400     Pt II    29030- 82535  K
  1869.3336    53495.000     1700     Pt II    48591-102086  K
  1869.46      53491.4        200     Ne III                 L
  1870.4100    53464.215    38000     Pt II     9356- 62820  05
  1870.8926    53450.423     8300     Pt II    21168- 74619  06
  1871.1038    53444.389    11000     Pt II    15791- 69235  08
  1871.5054    53432.921     1400     Pt II   110020- 56587  K
  1871.5965    53430.320     6700     Pt II    29261- 82692  K
  1871.7979    53424.571     5900     Pt II    46046- 99471  K
Character descriptor definitions (appear to right of intensity)
Code definitions

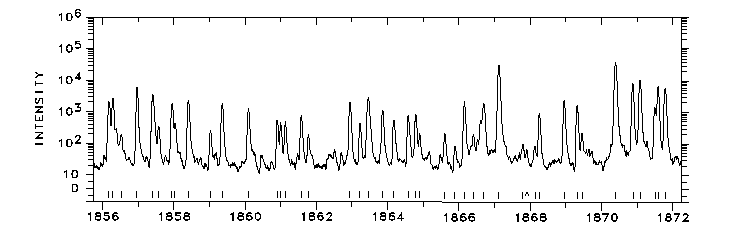

Photoelectric spectrum

1856-1872 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
