Lines and intensities in the range 1872-1888 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1872.3638    53408.424     1400     Pt II    41434- 94842  K
  1872.82      53395.4        300     Pt II   115060- 61665  K
  1873.02      53389.7        430     Pt II   110408- 57018  K
  1873.39      53379.2        520
  1873.4903    53376.31       270     Ne II                  C
  1873.6771    53370.99       150     Ne II                  C
  1873.8744    53365.37       330     Ne II                  C
  1874.1554    53357.368     1000     Pt I       775- 54133  N
  1874.2481    53354.729     1600     Pt I       823- 54178  N
  1874.4323    53349.486     5100     Pt I      6567- 59916  N
  1874.88      53336.7        560
  1874.9624    53334.403     1700     Pt I     10131- 63466  N
  1875.27      53325.7        230
  1875.84      53309.5         53     Pt I       823- 54133  N
  1876.0029    53304.82      1100     Ne II                  C
  1876.44      53292.4        160     Pt II    58062-111354  K
  1877.23      53270.0         47
  1877.4028    53265.075      900     Pt II   114455- 61190  K
  1877.6777    53257.28       710     Ne II                  C
  1878.19      53242.7        280
  1878.29      53239.9        350     Pt II   110258- 57018  K
  1878.4543    53235.258     1300     Pt I       775- 54011  D
  1878.6919    53228.526     6700     Pt II   104636- 51408  K
  1879.1031    53216.879    27000     Pt II    18097- 71314  06
  1879.51      53205.4        170
  1879.7298    53199.135     5200     Pt II    41434- 94633  K
  1879.7999    53197.152      930
  1880.1420    53187.472      200     Pt I       823- 54011  D
  1880.2090    53185.577     6800     Ne III                 L
  1880.4950    53177.487      530     Pt I       775- 53953  D
  1880.99      53163.5        320     Pt II    24879- 78043  K
  1881.2704    53155.570      510     Pt I     15501- 68657  N
  1881.5191    53148.543     1600     Pt II    23461- 76610  05
  1881.6889    53143.75       940     Ne II                  C
  1882.0900    53132.423      120     Pt II    16820- 69953  04
  1882.3916    53123.908     1100     Pt II    36484- 89607  16
  1882.4792    53121.44       750     Ne II                  C
  1883.0587    53105.088   220000     Pt II    13329- 66434  06
  1883.39      53095.7        290
  1883.7967    53084.28      3100     Ne II                  C
  1884.2045    53072.795     3300     Pt II    21168- 74241  06
  1884.4354    53066.292     1500     Pt II   114256- 61190  K
  1884.9927    53050.603     7700     Pt I     10116- 63167  N
  1885.4562    53037.563       91     Pt II    21717- 74754  11
  1885.64      53032.4        290
  1885.8171    53027.412    13000     Pt II    48591-101618  K
  1885.9970    53022.354     2500     Pt II    46046- 99068  K
  1887.62      52976.8        100
  1887.78      52972.3        520
Character descriptor definitions (appear to right of intensity)
Code definitions

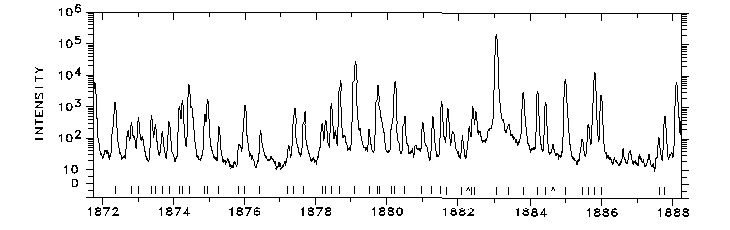

Photoelectric spectrum

1872-1888 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM
