Spectrum of Platinum homepage

Lines and intensities in the range 2062-2078 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2062.7943    48462.439    22000     Pt I       823- 49286  D
  2063.71      48440.9        160
  2064.29      48427.3         90     Pt II   114455- 66028  AK
  2064.29      48427.3         90     Pt II   114861- 66434  AK
  2064.92      48412.6         37     Ne III                 L
  2065.3084    48403.453    17000     Ne III                 L
  2066.9329    48365.416     8500     Pt I     10116- 58482  N
  2067.5105    48351.906    33000     Pt I         0- 48351  D
  2067.92      48342.3         81     Pt II   104930- 56587  K
  2068.1114    48337.859     1200     Pt II   109527- 61190  K
  2068.1799    48336.258     8000     Pt II    13329- 61665  04
  2068.6303    48325.735      300     Pt II    27255- 75581  12
  2068.6854    48324.447     1200     Pt I     15501- 63826  N
  2069.45      48306.6         92
  2070.46      48283.0        240
  2070.9443    48271.745    12000     Pt I      6567- 54839  A
  2070.9443    48271.745    12000     Pt I     10116- 58388  AN
  2071.16      48266.7        270
  2071.5446    48257.757     2000     Pt II    29261- 77519  10
  2071.7423    48253.154      510     Pt II    50564- 98817  K
  2073.17      48219.9        170     Pt II   121651- 73431  K
  2073.5962    48210.018     3100     Pt I     10116- 58326  N
  2074.2473    48194.887      420     Pt I     10131- 58326  N
  2074.40      48191.3        230
  2075.4004    48168.112    33000     Pt II     8419- 56587  09
  2075.92      48156.1        240
  2076.2219    48149.056     1300     Pt I     13496- 61645  N
  2076.2963    48147.332      550     Pt II    54373-102520  K
  2076.55      48141.5         58
  2076.97      48131.7         81
Character descriptor definitions (appear to right of intensity)
Code definitions

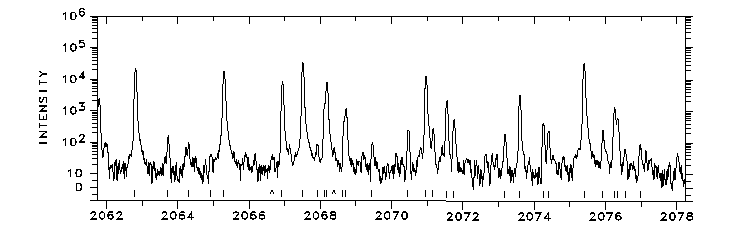

Photoelectric spectrum

2062-2078 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
