Lines and intensities in the range 2046-2062 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2047.4477    48825.638      690     Pt I     13496- 62321  N
  2048.17      48808.4        160
  2048.33      48804.6        160
  2048.54      48799.6        120     Pt II    43737- 92537  KM
  2048.70      48795.8         83
  2048.96      48789.6        200     Pt II    43737- 92526  K
  2049.1689    48784.633    13000     Pt II    21168- 69953  06
  2049.3255    48780.907     1400 P   Pt II    29261- 78043  K
  2049.3915    48779.336    94000     Pt I         0- 48779  D
  2049.5141    48776.419     2100     Pt II   105794- 57018  K
  2049.8396    48768.673     5600     Pt I       775- 49544  D
  2050.52      48752.5        100
  2050.74      48747.3        190     Pt I     15501- 64248  N
  2051.4224    48731.051      610     Pt II   113119- 64388  K
  2052.11      48714.7        190     Pt II    42031- 90746  K
  2052.21      48712.4        180
  2053.41      48683.9        170
  2053.69      48677.3         32
  2054.1900    48665.405      270     Pt II    53749-102414  K
  2054.43      48659.7        180
  2054.8678    48649.354      480     Pt I      6567- 55216  AN
  2054.8678    48649.354      480     Pt I     10131- 58780  AN
  2055.83      48626.6         81     Pt II   115060- 66434  K
  2056.0459    48621.481      310     Pt II    32237- 80858  16
  2057.0265    48598.308    39000     Pt II     8419- 57018  08
  2057.2923    48592.029      770     Pt II   110257- 61665  K
  2058.01      48575.1        110
  2058.26      48569.2        130     Ne III                 L
  2058.3942    48566.020     1800     Pt I     13496- 62062  N
  2058.9944    48551.866     1400     Pt II    24879- 73431  15
  2059.27      48545.4        120
  2059.6847    48535.596     4500     Pt I         0- 48535  D
  2059.9148    48530.175     5100     Pt II    16820- 65351  05
  2060.2705    48521.796      970
  2060.62      48513.6        340
  2060.7621    48510.224    14000     Pt I       775- 49286  D
  2061.0173    48504.217      840     Pt II    58491-106995  K
  2061.27      48498.3        120     Pt II    54373-102872  K
  2061.53      48492.2         77
  2061.6538    48489.245     1200     Pt II    29030- 77519  10
  2061.7317    48487.413     1000     Pt II    23461- 71948  07
  2061.7824    48486.221     2500     Pt II   109676- 61190  K
  2061.94      48482.5         88
Character descriptor definitions (appear to right of intensity)
Code definitions

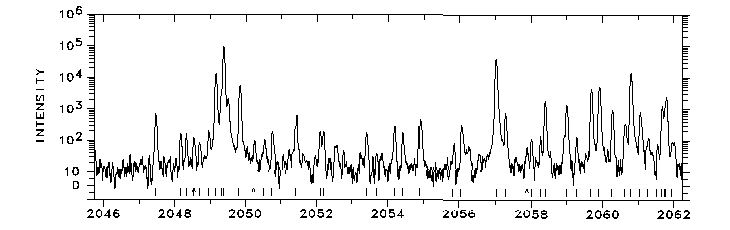

Photoelectric spectrum

2046-2062 Å

                      WAVELENGTH (ANGSTROMS) - AIR
