Spectrum of Platinum homepage

Lines and intensities in the range 2030-2046 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2030.4978    49233.162      770     Pt II    50564- 99797  K
  2030.6456    49229.579    31000     Pt I     10116- 59346  N
  2030.77      49226.6        330
  2030.86      49224.4        270     Pt II    29030- 78254  K
  2031.4397    49210.339      680     Pt II    21168- 70379  12
  2031.59      49206.7        210
  2032.4256    49186.471    46000     Pt I       823- 50010  N
  2032.9392    49174.046      820     Pt I     15501- 64675  N
  2033.44      49161.9        260
  2035.2685    49117.776     2000     Pt I     15501- 64619  N
  2035.7985    49104.991    10000     Pt I       775- 49880  D
  2036.4666    49088.882    98000     Pt II     4786- 53875  09
  2036.85      49079.6        160
  2036.9743    49076.649      450     Pt I      6140- 55216  D
  2037.3229    49068.253      450 S   Pt II   110258- 61190  K
  2037.52      49063.5         83
  2038.19      49047.4        150     Pt II    54373-103421  K
  2039.32      49020.2        110     Ne III                 L
  2039.5871    49013.789     1600     Pt I     15501- 64515  N
  2039.7039    49010.983     3500     Pt I     10116- 59127  N
  2040.3346    48995.833     5200     Pt I     10131- 59127  N
  2040.78      48985.1         80     Pt II    42031- 91016  K
  2041.25      48973.9        390
  2041.3668    48971.064      360
  2041.4605    48968.815     2900     Pt I      6567- 55536  D
  2041.5751    48966.067    62000     Pt II    15791- 64757  05
  2041.9609    48956.818      520     Pt II   110146- 61190  K
  2042.32      48948.2         95
  2042.41      48946.1        210
  2043.9746    48908.593      740     Pt II   116689- 67780  K
  2044.1155    48905.222      460     Pt II   114256- 65351  K
  2044.54      48895.1        140     Pt II    58491-107386  K
Character descriptor definitions (appear to right of intensity)
Code definitions

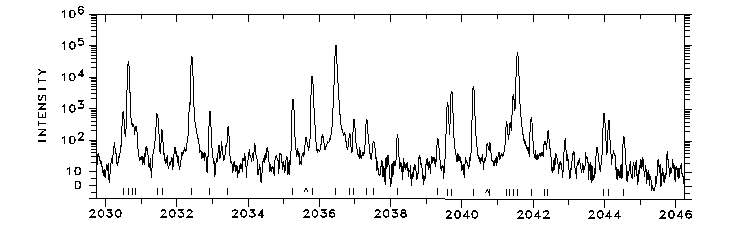

Photoelectric spectrum

2030-2046 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
