Spectrum of Platinum homepage

Lines and intensities in the range 2094-2110 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2094.37      47731.9        120
  2095.45      47707.3        120     Ne III                 L
  2096.1065    47692.35     69000     Ne II                  C
  2096.2538    47689.00      6600     Ne II                  C
  2096.83      47675.9        230     Pt II   112433- 64757  K
  2097.08      47670.2        180
  2097.2881    47665.483     3300     Pt I     15501- 63167  N
  2097.4478    47661.856    74000     Pt II     9356- 57018  05
  2098.2127    47644.483     1900     Pt II    53749-101394  K
  2098.7493    47632.303     3900     Pt I     18566- 66198  N
  2099.0111    47626.362     3100     Pt II   110408- 62781  K
  2099.25      47620.9        450     Ne III                 L
  2099.95      47605.1        130
  2100.1196    47601.227      340     Pt I     13496- 61097  N
  2101.00      47581.3        100
  2101.5979    47567.748    19000 P   Pt II    16820- 64388  10
  2101.6839    47565.801    15000 P   Pt I     15501- 63067  AN
  2101.6839    47565.801    15000 P   Pt I      6567- 54133  AN
  2102.67      47543.5        350     Pt II    54373-101916  K
  2102.8167    47540.181     2800     Pt II    48591- 96131  AK
  2102.8167    47540.181     2800     Pt II   117493- 69953  AK
  2103.03      47535.4        290     Pt II    58062-105597  K
  2103.3449    47528.242   110000     Pt I       823- 48351  D
  2103.4852    47525.072     1800     Pt I      6140- 53665  N
  2103.7536    47519.011     1900 U
  2103.7804    47518.405    12000     Pt II    21717- 69235  AK
  2103.7804    47518.405    12000     Pt II    48591- 96109  AK
  2103.92      47515.3        390
  2104.45      47503.3        140
  2105.0776    47489.126     1700     Pt II    23875- 71364  K
  2106.37      47460.0         96
  2107.04      47444.9        230
  2107.6556    47431.047      230     Pt II    29030- 76461  12
  2109.5055    47389.458     8600     Pt I     10116- 57506  D
  2109.6631    47385.919    12000     Pt I      6567- 53953  D
Character descriptor definitions (appear to right of intensity)
Code definitions

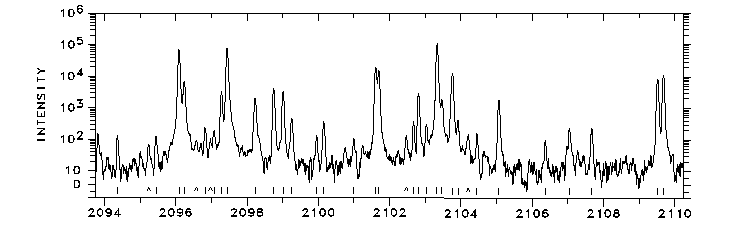

Photoelectric spectrum

2094-2110 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
