Spectrum of Platinum homepage

Lines and intensities in the range 2110-2126 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2110.3519    47370.453      730     Pt II    32237- 79607  12
  2110.48      47367.6         94
  2110.6657    47363.412     1900     Pt II    53749-101113  K
  2112.75      47316.7         60     Pt II    64003-111320  K
  2114.2307    47283.557     2200     Pt I     18566- 65850  N
  2114.44      47278.9        180     Pt II    32918- 80197  K
  2115.5823    47253.354    22000     Pt II    18097- 65351  05
  2116.1050    47241.683      330     Pt II   121651- 74409  K
  2116.2173    47239.175     3700     Pt II   110020- 62781  K
  2116.7102    47228.176     2300     Pt II    50564- 97792  K
  2117.19      47217.5         53
  2118.79      47181.8         97
  2119.63      47163.1        130
  2119.8880    47157.388     3600     Pt I     15501- 62659  N
  2121.0700    47131.113      270     Pt I     18566- 65697  N
  2121.93      47112.0         71
  2122.09      47108.5         47     Pt II   119057- 71948  K
  2122.5713    47097.781     4100     Pt I      6567- 53665  N
  2122.74      47094.0         97
  2122.8504    47091.588      830     Pt II   113119- 66028  K
  2123.34      47080.7        240     Pt II   114861- 67780  K
  2123.71      47072.5        120     Pt II   104090- 57018  K
  2124.0062    47065.967     2900     Pt II    50564- 97630  K
  2124.12      47063.4        120     Pt II    42031- 89095  K
  2124.35      47058.3        290
  2124.9015    47046.138     1000 S   Pt II    53749-100795  K
  2125.03      47043.3         64
Character descriptor definitions (appear to right of intensity)
Code definitions

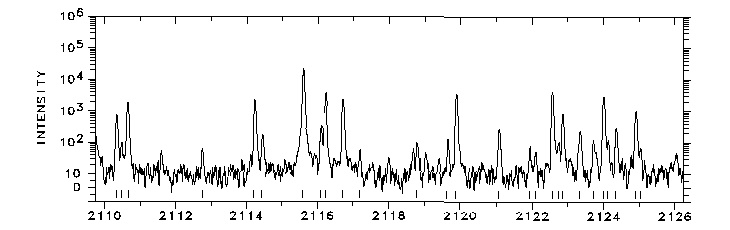

Photoelectric spectrum

2110-2126 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
