Spectrum of Platinum homepage

Lines and intensities in the range 2126-2142 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2127.4231    46990.382    32000     Pt II    15791- 62781  06
  2128.07      46976.1         71
  2128.4205    46968.364     3500     Pt II    54373-101341  K
  2128.5878    46964.673    40000 P   Pt I       775- 47740  D
  2128.6340    46963.654   130000     Pt I         0- 46963  N
  2129.47      46945.2        400     Pt I     13496- 60441  N
  2130.02      46933.1        460
  2130.7079    46917.947    26000     Pt II    16820- 63738  05
  2131.0749    46909.869      470     Pt I     10131- 57041  N
  2132.4727    46879.123      520     Pt I      6140- 53019  D
  2132.7460    46873.116      400
  2132.9687    46868.223       70     Pt II    36484- 83352  19
  2133.2486    46862.073     1700     Pt II    53749-100611  K
  2133.9737    46846.153     1700     Pt II   112433- 65587  K
  2134.6307    46831.737     2600     Pt I     13496- 60328  N
  2135.1631    46820.061    10000     Pt I     15501- 62321  N
  2135.3443    46816.087      390
  2137.25      46774.3        210     Pt II   111162- 64388  K
  2137.62      46766.3        220
  2137.9562    46758.900      740     Pt II    64003-110762  K
  2138.59      46745.0         61
  2139.4476    46726.308      700     Pt II   109507- 62781  K
  2139.66      46721.7         59     Pt II    46046- 92767  K
  2140.4367    46704.718      800
  2141.02      46692.0         65
  2141.1620    46688.899      550     Pt II    32918- 79607  12
  2141.81      46674.8         77     Pt II   114455- 67780  K
Character descriptor definitions (appear to right of intensity)
Code definitions

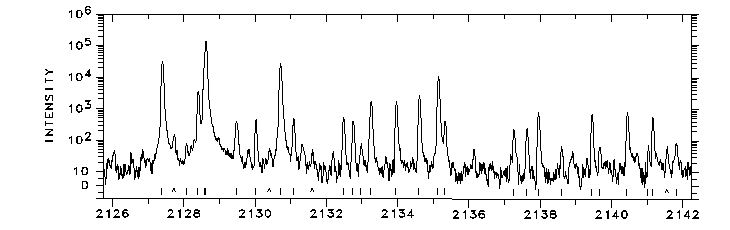

Photoelectric spectrum

2126-2142 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
