Spectrum of Platinum homepage

Lines and intensities in the range 2142-2158 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2142.32      46663.7        110
  2142.5054    46659.628     3900     Pt II    18097- 64757  06
  2143.08      46647.1        230
  2143.62      46635.4        230     Pt II    48591- 95226  K
  2144.2123    46622.489   200000 U   Pt I         0- 46622  D
  2144.2458    46621.759   350000 P   Pt II     4786- 51408  10
  2145.0395    46604.512     5200     Pt I     15501- 62106  N
  2145.1386    46602.359      300
  2146.8767    46564.634     1200     Pt II   109346- 62781  K
  2147.0706    46560.428     2400     Pt I     15501- 62062  N
  2147.3909    46553.485      560     Pt I     10116- 56670  N
  2147.50      46551.1        260
  2148.09      46538.3         88     Pt I     10131- 56670  N
  2148.4748    46530.002     1200     Pt II    54373-100903  K
  2148.9998    46518.636     1800     Pt II   110257- 63738  K
  2149.5030    46507.747      780     Pt II   116689- 70181  K
  2149.7007    46503.470     1100     Pt II    23875- 70379  14
  2149.8689    46499.832     1000     Ne III                 L
  2150.2397    46491.814     4000     Pt II    23461- 69953  06
  2150.6274    46483.433      850 U   Ne III                 L
  2150.6567    46482.800     4200 P   Pt I     16983- 63466  N
  2151.2003    46471.055      790     Ne III                 L
  2151.40      46466.7        110     Pt II   121651- 75184  K
  2151.69      46460.5        190     Ne III                 L
  2152.0902    46451.842     7500     Pt I      6567- 53019  D
  2152.32      46446.9        170
  2152.8656    46435.114       47     Pt II    24879- 71314  07
  2153.06      46430.9        170     Ne III                 L
  2153.3933    46423.736     1600     Pt I     13496- 59920  N
  2153.5394    46420.587     7500 P   Pt I     13496- 59916  N
  2153.5684    46419.962     6500 U   Pt I         0- 46419  D
  2154.14      46407.6        130     Pt II   110146- 63738  K
  2154.2472    46405.336     6200     Pt II   112433- 66028  AK
  2154.2472    46405.336     6200     Pt II   111162- 64757  AK
  2154.76      46394.3         48
  2157.2670    46340.384      580     Pt II    58491-104831  K
  2157.52      46335.0         82
  2157.89      46327.0         46
Character descriptor definitions (appear to right of intensity)
Code definitions

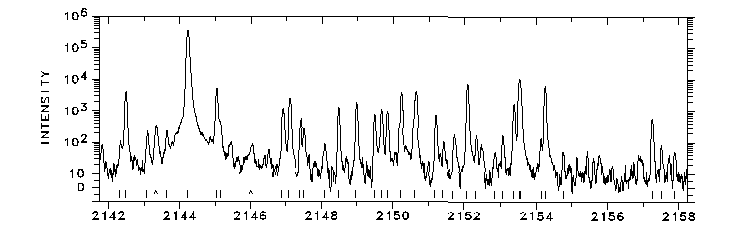

Photoelectric spectrum

2142-2158 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
