Lines and intensities in the range 2158-2174 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2159.1595    46299.771      500     Pt I     21967- 68266  N
  2159.29      46297.0        240     Ne III                 L
  2159.3719    46295.216      530     Ne III                 L
  2159.5153    46292.143      420     Ne III                 L
  2159.8289    46285.424      590
  2160.02      46281.3         74
  2160.57      46269.5        120
  2160.82      46264.2        170     Ne III                 L
  2160.9675    46261.037      690     Ne III                 L
  2161.1343    46257.468     1200     Ne III                 L
  2162.05      46237.9        340
  2163.6119    46204.503      550     Ne III                 L
  2163.7345    46201.886     2000     Ne III                 L
  2163.8965    46198.426      360     Pt II    64003-110202  K
  2164.18      46192.4        210     Pt II    64003-110196  K
  2164.2949    46189.923     1300     Pt I     13496- 59686  N
  2164.3955    46187.776      910
  2165.1407    46171.882     8000 P   Pt I     10116- 56288  N
  2165.2108    46170.386    30000 P   Pt I         0- 46170  D
  2165.8714    46156.306      400
  2165.9608    46154.401     1600     Pt II    29030- 75184  07
  2166.2045    46149.21       220     Ne II                  C
  2166.5655    46141.521      300 U   Pt II    24879- 71021  K
  2166.6376    46139.986     6500     Pt I       823- 46963  N
  2167.30      46125.9         68     Pt II    43737- 89863  K
  2168.56      46099.1         63
  2168.70      46096.1         79
  2169.2711    46083.977     3300     Pt I     16983- 63067  N
  2169.5637    46077.764      710     Pt II    23875- 69953  09
  2170.5112    46057.65       160     Ne II                  C
  2170.6696    46054.29       300 U   Ne II                  C
  2170.7267    46053.079     1100     Pt I     18566- 64619  N
  2171.79      46030.5        110     Pt II   119057- 73026  K
  2172.00      46026.1        110     Pt II   117340- 71314  K
  2172.3162    46019.385      420     Pt II   110408- 64388  K
  2172.3937    46017.744     1600     Pt II    32237- 78254  K
  2172.89      46007.2        170
  2173.19      46000.9         57
  2173.43      45995.8        110
Character descriptor definitions (appear to right of intensity)
Code definitions

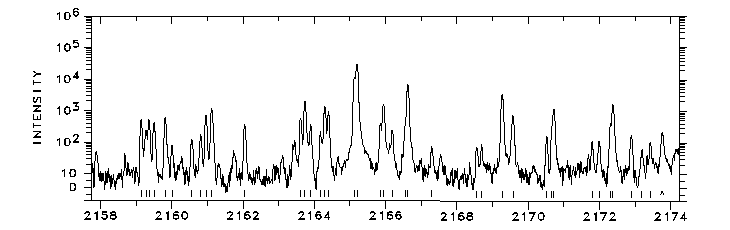

Photoelectric spectrum

2158-2174 Å

                      WAVELENGTH (ANGSTROMS) - AIR
