Spectrum of Platinum homepage

Lines and intensities in the range 2174-2190 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2174.6853    45969.257   290000     Pt I       823- 46792  N
  2174.8392    45966.005     1000     Pt I     13496- 59462  N
  2175.32      45955.8        150
  2175.52      45951.6        330
  2176.19      45937.5        150     Pt II   109676- 63738  K
  2176.4730    45931.504      820     Pt I      6140- 52071  D
  2176.6289    45928.214     2600     Ne III                 L
  2176.8802    45922.913     4200     Pt II    29261- 75184  07
  2177.6988    45905.652     5700     Ne III                 L
  2178.1182    45896.809              Fe I                   S
  2178.6549    45885.508     2000     Ne III                 L
  2179.4123    45869.563     1000     Pt II   110258- 64388  K
  2179.5832    45865.967     1300     Pt II    54373-100239  K
  2179.83      45860.8        430
  2180.3229    45850.408     4800     Pt I     15501- 61352  N
  2180.5042    45846.596    17000     Pt I       775- 46622  D
  2180.8613    45839.090    11000     Ne III                 L
  2181.7748    45819.90        60     Ne II                  C
  2182.1734    45811.532      250     Pt II   111162- 65351  K
  2182.2632    45809.645     2000     Ne III                 L
  2182.59      45802.8        110
  2182.7795    45798.811     7200     Pt I       823- 46622  D
  2183.23      45789.4        180     Pt II   109527- 63738  K
  2183.47      45784.3        270     Pt II   111371- 65587  K
  2184.1755    45769.542     7500     Pt II   110158- 64388  K
  2185.17      45748.7        140
  2186.4314    45722.325      600 P
  2186.4768    45721.375     8900 L   Pt II    53749- 99471  K
  2188.3437    45682.374      840     Pt I     18566- 64248  N
  2188.82      45672.4        120
  2189.50      45658.3        250
  2189.8625    45650.694     1400     Pt II   110408- 64757  K
Character descriptor definitions (appear to right of intensity)
Code definitions

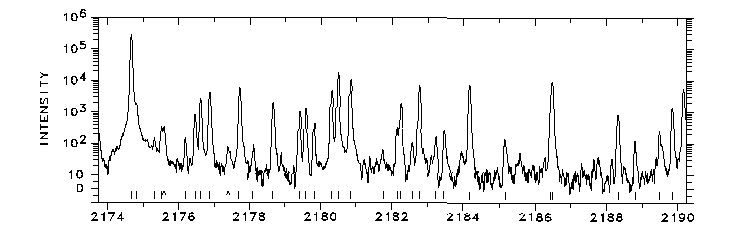

Photoelectric spectrum

2174-2190 Å

                      WAVELENGTH (ANGSTROMS) - AIR
