Spectrum of Platinum homepage

Lines and intensities in the range 2190-2206 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2190.1803    45644.069     5400     Pt I       775- 46419  D
  2190.3216    45641.126    40000     Pt II    18097- 63738  06
  2190.7859    45631.455     1000     Pt I     13496- 59127  N
  2191.27      45621.4        190
  2191.98      45606.6        180
  2192.34      45599.1         60
  2192.5064    45595.650     1100     Pt I     15501- 61097  N
  2192.8441    45588.628      450     Pt II    29030- 74619  08
  2193.31      45578.9         64
  2193.9016    45566.656     3300     Pt II    50564- 96131  K
  2194.71      45549.9        220     Pt II    34647- 80197  K
  2194.87      45546.6        170     Ne III                 L
  2195.49      45533.7        100     Pt II    32918- 78452  K
  2195.8322    45526.598      450     Pt II    32237- 77763  K
  2196.3763    45515.321      610
  2196.9120    45504.223     1000     Pt I      6567- 52071  D
  2197.0743    45500.863     2100     Pt II   110258- 64757  K
  2197.8914    45483.949     1800     Pt II    29261- 74745  08
  2199.02      45460.6         92
  2199.12      45458.5        340
  2199.29      45455.0        380     Pt II    58062-103517  K
  2199.7010    45446.535     8000     Pt I     21967- 67413  N
  2200.45      45431.1         98     Pt II    48591- 94022  K
  2200.66      45426.7         66
  2200.81      45423.6        100
  2201.0082    45419.547     8500     Pt I     10116- 55536  D
  2201.31      45413.3        290     Pt II    36484- 81897  K
  2201.59      45407.5         71
  2201.74      45404.5         64
  2201.9153    45400.836     5500     Pt II   110158- 64757  K
  2202.0165    45398.750     7900     Pt II    15791- 61190  06
  2202.2230    45394.494    42000     Pt I       775- 46170  D
  2202.4664    45389.478    17000     Pt II   110146- 64757  K
  2203.8924    45360.112     3500     Pt II    23875- 69235  14
  2204.29      45351.9        260
  2204.9955    45337.422      750     Ne III                 L
  2205.0541    45336.218     1900     Pt II    32918- 78254  K
  2205.8839    45319.165      780     Pt II    53749- 99068  K
Character descriptor definitions (appear to right of intensity)
Code definitions

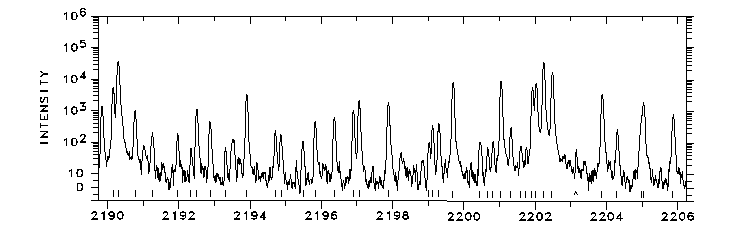

Photoelectric spectrum

2190-2206 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
