Lines and intensities in the range 2206-2222 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2206.7295    45301.801     5100     Pt II    24879- 70181  10
  2207.2323    45291.482      770     Ne III                 L
  2208.35      45268.6         57
  2208.7801    45259.748      910     Pt I     18566- 63826  N
  2209.3139    45248.814     1400     Ne III                 L
  2209.5043    45244.913    14000     Pt II   106434- 61190  P
  2210.2121    45230.427      590
  2210.64      45221.7         61
  2210.8919    45216.522              Si I                   B
  2211.14      45211.4         36     Pt II   110257- 65046  K
  2211.4074    45205.982     1500     Pt II    96614- 51408  05
  2211.8204    45197.542     1200     Ne III                 L
  2212.20      45189.8        150     Pt II    50564- 95754  K
  2212.58      45182.0         78     Ne III                 L
  2213.17      45170.0        430
  2213.7165    45158.833     1500     Ne III                 L
  2213.9314    45154.449     1600     Pt I     21967- 67121  N
  2214.2720    45147.503     3400     Pt II    29261- 74409  K
  2214.9014    45134.676     7800     Pt II   111162- 66028  K
  2215.21      45128.4        170
  2215.40      45124.5        160     Pt II    32918- 78043  K
  2215.5540    45121.384     1600
  2215.6525    45119.378      430     Pt II   109507- 64388  K
  2215.94      45113.5        150
  2216.0389    45111.511     1700     Ne III                 L
  2216.26      45107.0        350
  2216.6688    45098.692              Si I                   B
  2217.3450    45084.941     7500     Pt I     10131- 55216  D
  2217.63      45079.1        140
  2218.55      45060.5        180
  2218.72      45057.0        370     Pt II   119057- 73999  AK
  2218.72      45057.0        370     Pt II   110408- 65351  AK
  2218.93      45052.7        290
  2219.35      45044.2        520
  2220.73      45016.2        120
Character descriptor definitions (appear to right of intensity)
Code definitions

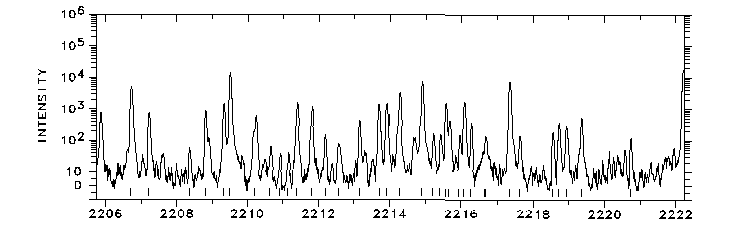

Photoelectric spectrum

2206-2222 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
