Spectrum of Platinum homepage

Lines and intensities in the range 2222-2238 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2222.2053    44986.344    18000
  2222.6134    44978.083    19000     Pt I      6567- 51545  D
  2223.35      44963.2        180
  2223.52      44959.7        280
  2223.90      44952.1         99
  2224.23      44945.4         93
  2224.5247    44939.443     1600     Pt I     15501- 60441  N
  2225.0094    44929.655    48000     Pt II   101517- 56587  K
  2225.56      44918.5        420
  2225.75      44914.7         28
  2226.00      44909.7        350     Pt II    60986-105896  K
  2226.1261    44907.118     3400     Pt II   110258- 65351  K
  2226.8442    44892.639      990     Pt I     10116- 55009  N
  2227.12      44887.1        150     Pt II   105794- 60907  K
  2227.53      44878.8         49
  2228.4978    44859.330     2100     Pt II    21168- 66028  07
  2228.59      44857.5        130
  2228.84      44852.4         54     Pt II    43737- 88589  K
  2229.2303    44844.591     9700     Pt II    16820- 61665  04
  2229.67      44835.7        590     Pt II    54373- 99209  K
  2229.94      44830.3         75     Pt I     13496- 58326  N
  2230.15      44826.1        100     Pt I     15501- 60328  N
  2230.67      44815.7        520     Pt II   119057- 74241  K
  2230.9447    44810.133      320     Pt II    58062-102872  K
  2231.0958    44807.099     3900     Pt II   110158- 65351  K
  2231.23      44804.4        110
  2231.55      44798.0        330     Pt II    64003-108802  K
  2231.6623    44795.727     1600     Pt II   110146- 65351  K
  2232.8199    44772.504      830     Pt II   105962- 61190  K
  2232.9725    44769.445    15000     Pt II   106434- 61665  P
  2233.1579    44765.727      550
  2234.47      44739.4        490     Pt II    60986-105726  K
  2234.9262    44730.313    18000     Pt I         0- 44730  D
  2235.0229    44728.376      600     Pt II   111162- 66434  K
  2235.3029    44722.774     9300     Pt II    18097- 62820  06
  2235.4674    44719.485      620     Pt I      6567- 51286  D
  2236.2508    44703.82        71     Ne II                  C
  2236.66      44695.6         36     Pt II    54373- 99068  K
  2237.03      44688.2        180
  2237.3520    44681.818     1600     Pt II   115060- 70379  K
  2237.8916    44671.046     2400     Pt II   110258- 65587  K
Character descriptor definitions (appear to right of intensity)
Code definitions

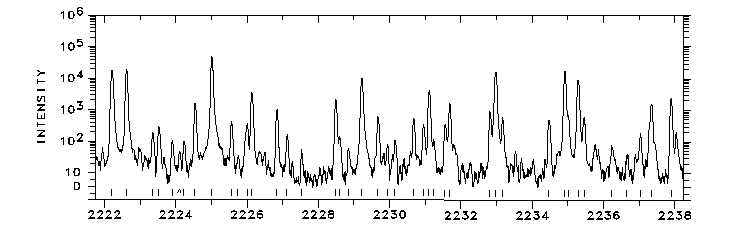

Photoelectric spectrum

2222-2238 Å

                      WAVELENGTH (ANGSTROMS) - AIR
