Spectrum of Platinum homepage

Lines and intensities in the range 2238-2254 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2238.04      44668.1        190
  2238.38      44661.3        310     Pt II    50564- 95226  K
  2239.80      44633.0        370
  2240.3222    44622.586     1300     Pt I       775- 45398  D
  2240.6434    44616.189      560     Pt II    58062-102678  K
  2240.8965    44611.151   240000     Pt II   101199- 56587  04
  2241.2288    44604.537    15000     Pt II   105794- 61190  K
  2242.00      44589.2        100     Pt II   109346- 64757  K
  2242.63      44576.7        110
  2244.9773    44530.068    21000     Pt I      6567- 51097  D
  2245.5244    44519.219   170000     Pt II     9356- 53875  06
  2245.9752    44510.284      650
  2246.0273    44509.252      650
  2246.4630    44500.620      600 U   Pt I     18566- 63067  N
  2246.5216    44499.460   110000     Pt II   101517- 57018  K
  2246.7172    44495.585     5900
  2246.9427    44491.121      600     Pt I     13496- 57987  D
  2247.4822    44480.442    15000     Pt II   105388- 60907  11
  2248.15      44467.2        180
  2248.32      44463.9        340
  2248.42      44461.9        150
  2248.59      44458.5        400     Pt II    58062-102520  K
  2249.3075    44444.350    24000     Pt I         0- 44444  A
  2249.3075    44444.350    24000     Pt II    54373- 98817  AK
  2249.6320    44437.939      800     Pt II   119057- 74619  K
  2249.8994    44432.659    16000     Pt I         0- 44432  E
  2250.38      44423.2         99
  2250.6201    44418.431     9000     Pt II    21168- 65587  12
  2250.7883    44415.113      410     Pt I     15501- 59916  N
  2251.5105    44400.867    19000     Pt II    29030- 73431  18
  2251.8084    44394.993    13000     Pt II    95803- 51408  05
  2252.09      44389.4         72
  2252.32      44384.9         38
  2252.5690    44380.005     6400     Pt II   110408- 66028  K
  2252.8022    44375.41       200     Ne II                  C
  2253.1210    44369.132     3500     Pt II    16820- 61190  05
  2253.96      44352.6        110     Pt II    58062-102414  K
Character descriptor definitions (appear to right of intensity)
Code definitions

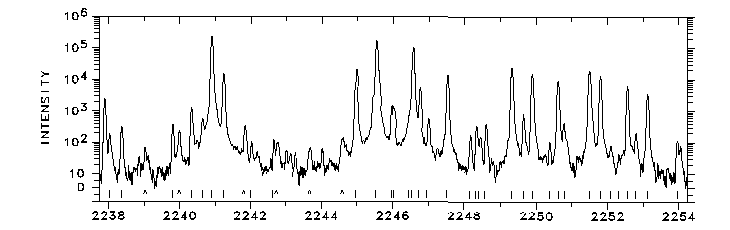

Photoelectric spectrum

2238-2254 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
