Spectrum of Platinum homepage

Lines and intensities in the range 2254-2270 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2254.05      44350.8         77
  2255.1285    44329.640     1800     Pt II   105388- 61058  11
  2255.38      44324.7        210     Pt II   109676- 65351  K
  2255.6725    44318.949     1300     Pt II    23461- 67780  K
  2256.0645    44311.249      600 U   Pt II   119057- 74745  K
  2256.0897    44310.754     8200 P   Pt II    21717- 66028  07
  2256.3955    44304.75       380     Ne II                  C
  2256.4402    44303.873     1000
  2256.7868    44297.069     4500     Pt II   105962- 61665  K
  2257.0841    44291.234     1000 P
  2257.1283    44290.367     3500 P   Pt I     15501- 59792  N
  2257.43      44284.4        150
  2257.75      44278.2         53     Pt II    50564- 94842  K
  2258.7143    44259.271      840     Pt II    34647- 78906  16
  2259.3776    44246.278     2300
  2259.63      44241.3         35
  2259.77      44238.6         53
  2260.1994    44230.191      670     Pt II   110258- 66028  K
  2260.4894    44224.519     1800     Pt II    32237- 76461  13
  2262.5437    44184.367      400     Pt I     15501- 59686  N
  2262.6453    44182.385     8200     Pt II    21168- 65351  07
  2262.7185    44180.955   260000     Pt II   101199- 57018  04
  2262.8033    44179.300     1000 P   Pt II   105086- 60907  K
  2262.9279    44176.868      890     Pt II   109527- 65351  K
  2263.1646    44172.247      870     Ne III                 L
  2263.3116    44169.379     5300     Pt II    29261- 73431  18
  2263.5635    44164.463      540
  2263.8611    44158.659    21000     Pt II   105066- 60907  11
  2264.8318    44139.733      570     Ne III                 L
  2264.9735    44136.973      300 P
  2265.0364    44135.747     1700
  2265.3238    44130.148      400 P   Pt II   110158- 66028  K
  2265.3794    44129.065     5200     Pt II   105794- 61665  K
  2266.0799    44115.426      450     Ne III                 L
  2266.4082    44109.035     1900     Pt II    27255- 71364  K
  2266.66      44104.1        160
  2266.7928    44101.552      580
  2267.2445    44092.766      760     Pt I     18566- 62659  N
  2267.87      44080.6        240
  2268.1057    44076.026     2100     Pt II   114455- 70379  K
  2268.8384    44061.794    25000     Pt I     10116- 54178  N
  2269.8986    44041.215      870
Character descriptor definitions (appear to right of intensity)
Code definitions

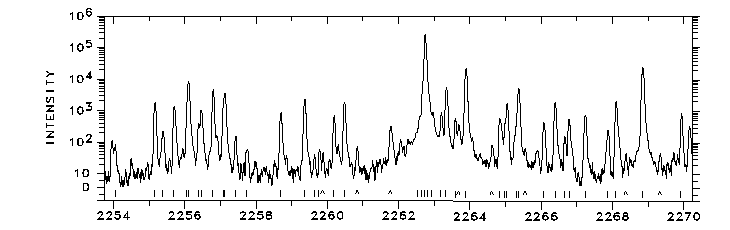

Photoelectric spectrum

2254-2270 Å

                      WAVELENGTH (ANGSTROMS) - AIR
