Spectrum of Platinum homepage

Lines and intensities in the range 2270-2286 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2270.15      44036.3        340     Pt II    53749- 97786  K
  2270.33      44032.8        270     Pt II    64003-108037  K
  2270.53      44029.0        560     Pt II    58491-102520  K
  2271.1694    44016.576      170     Pt I     10116- 54133  N
  2271.5067    44010.040      500     Pt I     13496- 57506  N
  2271.6194    44007.857    15000     Pt II   105066- 61058  11
  2272.30      43994.7        140
  2272.3928    43992.880      510     Pt II   110020- 66028  K
  2272.75      43986.0        210
  2273.27      43975.9         43
  2273.5812    43969.886     2300     Ne III                 L
  2274.0682    43960.471     2500     Pt I     15501- 59462  N
  2274.3816    43954.415    78000     Pt I       775- 44730  E
  2274.8409    43945.541    18000     Pt I         0- 43945  E
  2275.3406    43935.891     4000     Pt II    48591- 92526  K
  2275.84      43926.3        220
  2276.4229    43915.004     5800     Pt I      6140- 50055  E
  2276.7069    43909.527      630     Pt II   117340- 73431  K
  2276.8553    43906.665     4700     Pt I       823- 44730  E
  2277.0957    43902.030      640
  2277.3650    43896.838     1900     Pt II   105086- 61190  K
  2277.9574    43885.424      630     Pt I     21967- 65852  N
  2278.3772    43877.339      410     Pt II   114256- 70379  K
  2278.7659    43869.855      590     Pt II    21717- 65587  12
  2278.95      43866.3        110     Ne III                 L
  2279.5408    43854.944     2100     Pt II    58062-101916  K
  2280.3080    43840.190     3900     Pt II   114861- 71021  K
  2280.4916    43836.661     4600     Pt I     10116- 53953  E
  2281.1942    43823.161    29000     Pt II   110257- 66434  K
  2281.2798    43821.517      400     Pt I     10131- 53953  N
  2281.52      43816.9         99
  2281.6963    43813.518     1300     Pt II    54373- 98186  K
  2281.9613    43808.430     1900
  2283.96      43770.1        230
  2285.20      43746.3        200     Pt II   115060- 71314  K
  2285.5181    43740.261     3500     Pt II   104930- 61190  K
Character descriptor definitions (appear to right of intensity)
Code definitions

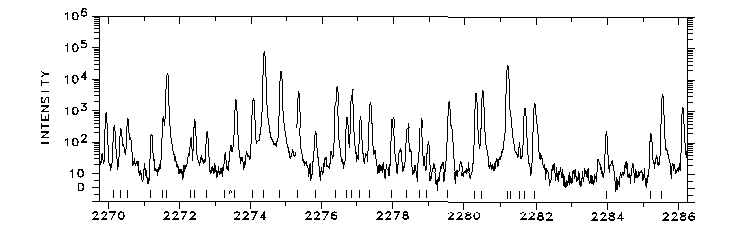

Photoelectric spectrum

2270-2286 Å

                      WAVELENGTH (ANGSTROMS) - AIR
