Spectrum of Platinum homepage

Lines and intensities in the range 2286-2302 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2286.0942    43729.238     1400     Pt II   104636- 60907  P
  2286.4390    43722.645    18000     Pt II   105388- 61665  11
  2286.9707    43712.480     4200     Pt II   110146- 66434  K
  2287.3643    43704.959    26000     Pt II   104763- 61058  K
  2287.8248    43696.164      680     Pt II   115060- 71364  K
  2288.0770    43691.348      250 P   Pt II    32918- 76610  A
  2288.0770    43691.348      250 P   Pt II   119057- 75365  AK
  2288.2050    43688.903   180000     Pt II    13329- 57018  05
  2289.2765    43668.457    25000     Pt I       775- 44444  E
  2290.0616    43653.488      610
  2291.5144    43625.813      250     Pt I     15501- 59127  N
  2291.6058    43624.073     4500
  2292.3987    43608.986    90000     Pt I       823- 44432  E
  2293.4678    43588.659     1800     Pt II    21168- 64757  07
  2294.0059    43578.436     1500     Pt II   104636- 61058  P
  2294.29      43573.0        280
  2294.5676    43567.770      130     Pt II    18097- 61665  05
  2294.9724    43560.086     4000
  2295.6764    43546.728     6400     Pt II   114861- 71314  K
  2295.7435    43545.455     6000     Pt I     13496- 57041  N
  2295.8748    43542.965     2400     Pt II    32918- 76461  14
  2296.3797    43533.393      210     Pt I     10131- 53665  N
  2296.52      43530.7         53     Pd II
  2296.64      43528.5         57
  2297.1873    43518.089     4300     Pt II   114539- 71021  K
  2297.59      43510.5         88
  2297.68      43508.8        180
  2297.7869    43506.735              Fe I                   R
  2298.0163    43502.392     1100     Pt II   104410- 60907  K
  2298.1494    43499.873     1500     Pt II   109527- 66028  K
  2298.3680    43495.735     2900     Pt I     18566- 62062  N
  2298.7859    43487.830     2600     Pt I      6567- 50055  N
  2299.1162    43481.583      680
  2299.2020    43479.960     1100     Pt II   109507- 66028  K
  2299.4324    43475.603     2200     Pt II   119057- 75581  K
  2300.1421    43462.191              Fe I                   R
  2300.2469    43460.21       120     Ne II                  C
  2300.38      43457.7        450     Pt I     16983- 60441  AN
  2300.38      43457.7        450     Pt II    50564- 94022  AK
  2300.73      43451.1        130
  2300.99      43446.2         55
  2301.175     43442.68               Fe                     S
  2301.54      43435.8        140
  2301.69      43433.0        160     Pt II    53749- 97183  K
Character descriptor definitions (appear to right of intensity)
Code definitions

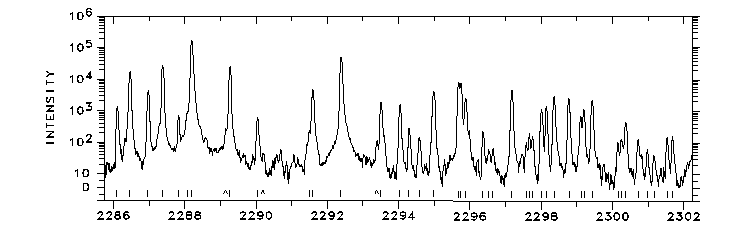

Photoelectric spectrum

2286-2302 Å

                      WAVELENGTH (ANGSTROMS) - AIR
