Spectrum of Platinum homepage

Lines and intensities in the range 2302-2318 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2302.3068    43421.330    11000     Pt II   105086- 61665  K
  2302.42      43419.2        460     Pt II    54373- 97792  K
  2303.2065    43404.369     7600     Pt I      6140- 49544  E
  2303.90      43391.3         34     Ne III                 L
  2304.12      43387.2         54
  2304.37      43382.5         72     Pt II    64003-107386  AK
  2304.37      43382.5         72     Pt II   111162- 67780  AK
  2304.83      43373.8         99     Ne III                 L
  2305.34      43364.2        110     Pt I     21967- 65331  N
  2305.6355    43358.646     1900
  2306.0122    43351.565     2800     Pt II   104410- 61058  K
  2306.58      43340.9        160     Ne III                 L
  2307.78      43318.4        130     Pt II   109346- 66028  K
  2308.0437    43313.411    35000     Pt I      6567- 49880  E
  2308.63      43302.4         61     Ne III                 L
  2308.73      43300.5         55
  2309.07      43294.2         74
  2309.3225    43289.427      400
  2309.87      43279.2        200
  2310.5009    43267.351      770
  2310.76      43262.5        340
  2310.9626    43258.707   200000     Pt II    13329- 56587  05
  2311.8636    43241.850     3200     Pt II   109676- 66434  K
  2312.2207    43235.172      570     Pt II   114256- 71021  K
  2313.0347    43219.958     4700     Pt II    21168- 64388  12
  2314.21      43198.0        140     Pt II   112433- 69235  K
  2315.0140    43183.009     2600     Pt II   104090- 60907  K
  2315.24      43178.8        310
  2315.5024    43173.902    14000     Pt I     13496- 56670  N
  2315.71      43170.0         90
  2317.10      43144.1         74
  2317.2977    43140.456     1200     Pt II   114455- 71314  K
  2317.80      43131.1        180
Character descriptor definitions (appear to right of intensity)
Code definitions

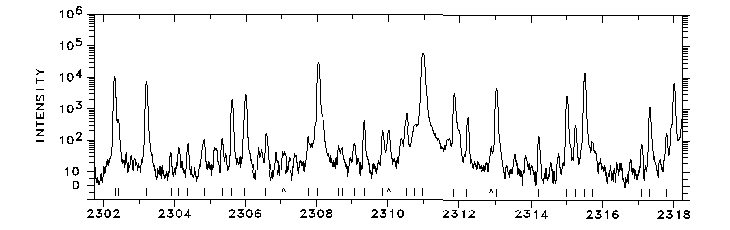

Photoelectric spectrum

2302-2318 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
