Spectrum of Platinum homepage

Lines and intensities in the range 2334-2350 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2335.0214    42813.032      610     Pt II   114127- 71314  K
  2335.1888    42809.963     8800     Pt II    18097- 60907  A
  2335.1888    42809.963     8800     Pt II    54373- 97183  AK
  2335.2555    42808.740     1000     Pt I     16983- 59792  N
  2336.09      42793.4         66
  2336.40      42787.8        120
  2336.59      42784.3         53
  2337.85      42761.2         61
  2338.75      42744.8        160     Pt II   121651- 78906  K
  2339.0741    42738.859    11000     Pt II    96614- 53875  05
  2339.3589    42733.657     2500     Pt II    58062-100795  K
  2339.77      42726.1         90
  2340.1805    42718.654    21000     Pt I      6567- 49286  E
  2340.7195    42708.819      380     Pt I     21967- 64675  N
  2340.94      42704.8         72
  2341.4178    42696.082     7900     Pt II   106434- 63738  P
  2341.53      42694.0        450     Pt II    53749- 96443  K
  2342.7732    42671.382     1100     Pt II    21717- 64388  13
  2342.95      42668.2         56
  2343.10      42665.4         48
  2343.2412    42662.861      830     Pt II    32918- 75581  13
  2343.3952    42660.057     9500     Pt I         0- 42660  E
  2343.91      42650.7         38     Pt II    60986-103637  K
  2344.89      42632.9         35     Pt II    50564- 93197  K
  2345.15      42628.1         99
  2345.56      42620.7         60
  2346.7367    42599.318      810     Pt I     15501- 58101  N
  2346.97      42595.1        250     Pt II   117340- 74745  K
  2347.1600    42591.638     3600     Pt I     10116- 52708  N
  2348.03      42575.9        130
  2348.4833    42567.641     6000     Pt II   105388- 62820  12
  2348.5456    42566.511     6600     Pt II    23461- 66028  07
  2349.4764    42549.648     1700     Pt II    58062-100611  K
Character descriptor definitions (appear to right of intensity)
Code definitions

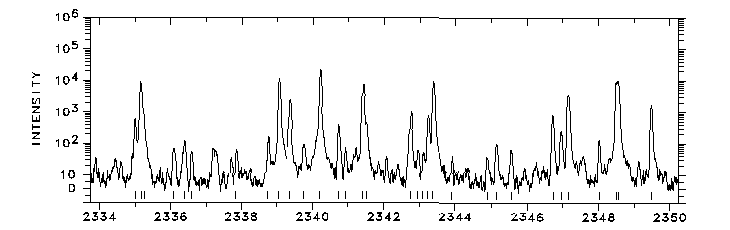

Photoelectric spectrum

2334-2350 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
