Lines and intensities in the range 2350-2366 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2350.65      42528.4        110
  2351.69      42509.6         50
  2351.86      42506.5         59
  2352.05      42503.1         69
  2352.73      42490.8         56
  2353.0213    42485.551      380     Pt I     15501- 57987  N
  2353.2883    42480.732      590
  2353.4916    42477.062     1600     Pt II   110257- 67780  K
  2353.65      42474.2        260
  2355.16      42447.0        160     Pt II    32918- 75365  AK
  2355.16      42447.0        160     Pt II   119057- 76610  AK
  2355.89      42433.8         49
  2356.17      42428.8         72
  2356.3384    42425.748     3900 L
  2356.57      42421.6        130
  2356.8505    42416.531      880
  2357.1047    42411.956    64000     Pt I       775- 43187  E
  2357.5804    42403.399     3800     Pt I     10116- 52520  N
  2358.04      42395.1        260
  2358.7653    42382.100       92     Pt II    32237- 74619  09
  2359.08      42376.4        150
  2359.61      42366.9        200
  2360.31      42354.4         35
  2360.45      42351.9         69     Pt I     21967- 64319  N
  2360.63      42348.6         61
  2362.12      42321.9        120
  2362.8646    42308.578     1600     Pt II   117493- 75184  K
  2363.2297    42302.043     5200     Ne III                 L
  2364.16      42285.4        230
  2364.2318    42284.115      140     Pt II    29030- 71314  09
  2364.4860    42279.569     2200     Pt II   116689- 74409  K
  2364.60      42277.5         78
  2364.9754    42270.82       140     Ne II                  C
  2365.1539    42267.63       350     Ne II                  C
  2365.2273    42266.319      850     Pt II    32918- 75184  A
  2365.2273    42266.319      850     Pt II   105086- 62820  AK
  2365.3485    42264.153    25000 C
  2365.4128    42263.005     1600 P   Ne III                 L
  2365.7487    42257.004     1800     Ne III                 L
Character descriptor definitions (appear to right of intensity)
Code definitions

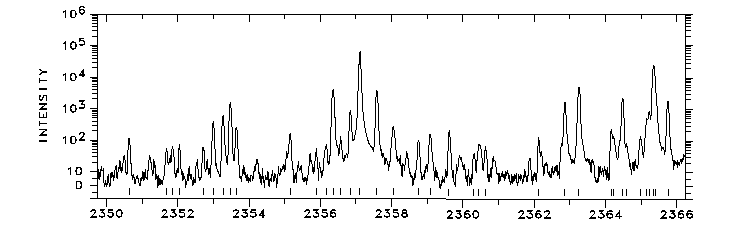

Photoelectric spectrum

2350-2366 Å

                      WAVELENGTH (ANGSTROMS) - AIR
