Spectrum of Platinum homepage

Lines and intensities in the range 2366-2382 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2366.3729    42245.858    13000     Pt II   105066- 62820  13
  2367.0394    42233.964     1500     Ne III                 L
  2367.6160    42223.680     7800     Pt II   105962- 63738  K
  2368.2781    42211.876    21000     Pt I      6567- 48779  E
  2368.83      42202.0         89
  2369.26      42194.4         68
  2369.53      42189.6        210
  2369.67      42187.1        170
  2369.72      42186.2        160
  2369.97      42181.7         37
  2370.06      42180.1         35
  2371.4185    42155.980      920     Pt II   117340- 75184  K
  2371.6165    42152.461     4200     Pt II    23875- 66028  11
  2372.10      42143.9        180
  2372.5390    42136.073     2900     Pt II   111371- 69235  K
  2372.82      42131.1         53
  2373.32      42122.2         70
  2374.27      42105.4        110
  2374.8090    42095.80        86     Ne II                  C
  2375.13      42090.1        570
  2375.46      42084.3        120
  2377.0752    42055.671     8400     Pt II   105794- 63738  K
  2377.1539    42054.277      900     Pt II   112433- 70379  K
  2377.2773    42052.096    23000     Pt II     9356- 51408  07
  2377.58      42046.7        220     Pt II   106434- 64388  K
  2377.9606    42040.012     4700     Pt I     13496- 55536  E
  2378.0597    42038.260     2200     Pt II    43737- 85775  K
  2378.2731    42034.490      380     Pt II   115060- 73026  K
  2379.9758    42004.419      370     Pt I     15501- 57506  A
  2379.9758    42004.419      370     Pt II    32237- 74241  A
  2379.9758    42004.419      370     Pt II    53749- 95754  AK
  2380.38      41997.3         50
  2381.06      41985.3        140
  2381.2324    41982.254     1900
  2381.3616    41979.978      260     Pt II    27255- 69235  15
  2381.78      41972.6        220     Pt II    50564- 92537  K
Character descriptor definitions (appear to right of intensity)
Code definitions

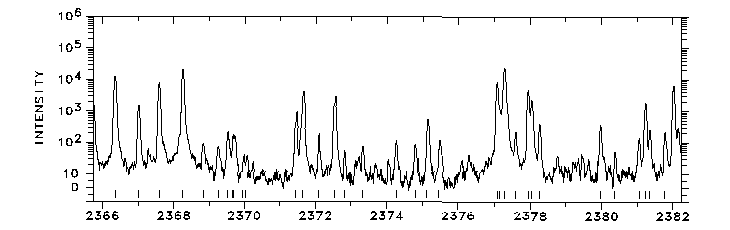

Photoelectric spectrum

2366-2382 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
