Spectrum of Platinum homepage

Lines and intensities in the range 2382-2398 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2382.0330    41968.145     6500     Pt I      6567- 48535  A
  2382.0330    41968.145     6500     Pt I     26638- 68606  AN
  2382.15      41966.1        300
  2382.86      41953.6         87
  2383.18      41947.9         69
  2383.44      41943.4         61     Pt II   116689- 74745  K
  2383.6432    41939.797    12000     Pt I     10131- 52071  E
  2384.3213    41927.870     5900     Pt II    95803- 53875  06
  2385.09      41914.4        180
  2385.54      41906.5         47
  2386.15      41895.7        190     Pt II   109676- 67780  K
  2386.5017    41889.566     2900     Pt II    23461- 65351  07
  2386.8089    41884.176    11000     Pt I       775- 42660  E
  2387.2596    41876.270     1700
  2387.3456    41874.760      250     Pt I     18566- 60441  N
  2389.5358    41836.382    36000     Pt I       823- 42660  E
  2390.0515    41827.355      260     Pt II    32918- 74745  09
  2390.6758    41816.434      920     Pt II   104636- 62820  P
  2390.7975    41814.305      200     Pt II    34647- 76461  15
  2391.76      41797.5        260     Pt I     16983- 58780  N
  2392.02      41792.9        180
  2393.96      41759.1        130     Pt II    29261- 71021  K
  2394.22      41754.5        270
  2395.00      41740.9         46
  2395.2985    41735.738      800     Pt II    58062- 99797  K
  2395.6470    41729.668      260     Pt II    37877- 79607  17
  2396.02      41723.2        110
  2396.1705    41720.552     6000     Pt I     13496- 55216  E
  2396.6869    41711.562     7400     Pt II    23875- 65587  15
  2397.76      41692.9         79
  2397.83      41691.7         62     Pt II    60986-102678  K
Character descriptor definitions (appear to right of intensity)
Code definitions

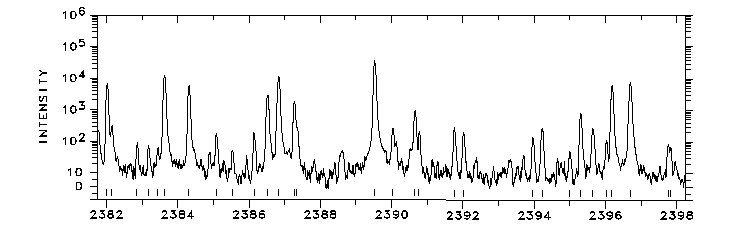

Photoelectric spectrum

2382-2398 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
