Spectrum of Platinum homepage

Lines and intensities in the range 2398-2414 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2398.6409    41677.586      900     Pt II   106434- 64757  P
  2398.73      41676.0         73
  2399.2413    41667.158              Fe II                  S
  2400.01      41653.8         57
  2400.2707    41649.289     6500     Pt II   105388- 63738  13
  2400.56      41644.3         85     Ne III                 L
  2400.75      41641.0        100
  2401.0033    41636.581     4700     Pt I     10116- 51753  E
  2401.8773    41621.432     8500     Pt I     10131- 51753  E
  2402.3655    41612.974      700     Pt II    21168- 62781  09
  2403.0918    41600.398    17000     Pt I      6140- 47740  E
  2403.50      41593.3        110
  2403.7227    41589.480      450     Pt II   104410- 62820  K
  2404.6239    41573.895     2500     Pt II   105962- 64388  K
  2405.7269    41554.835    15000     Pt II    24879- 66434  10
  2406.5926    41539.889      740     Pt I     15501- 57041  N
  2407.29      41527.9         49
  2407.59      41522.7         57
  2407.82      41518.7        140
  2408.65      41504.4        160     Pt II   116689- 75184  K
  2409.41      41491.3        110
  2409.63      41487.5        160
  2410.3280    41475.516      780     Pt II    23875- 65351  11
  2411.89      41448.7        110
  2411.99      41446.9        360
  2412.8173    41432.731      410     Ne III                 L
  2412.90      41431.3        230     Ne III                 L
  2413.0462    41428.800      850     Pt I     10116- 51545  A
  2413.0462    41428.800      850     Pt II   114455- 73026  AK
  2413.18      41426.5         86     Ne III                 L
  2413.54      41420.3         68     Ne III                 L
  2413.76      41416.5        100     Ne III                 L
Character descriptor definitions (appear to right of intensity)
Code definitions

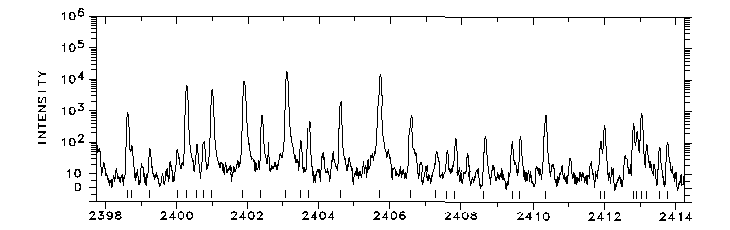

Photoelectric spectrum

2398-2414 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
