Spectrum of Platinum homepage

Lines and intensities in the range 2414-2430 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2415.25      41391.0        220
  2415.60      41385.0         57
  2417.3375    41355.26       450     Ne II                  C
  2417.66      41349.7        110
  2417.7302    41348.544      910 U   Pt II    29030- 70379  16
  2417.7630    41347.982     4600 P   Pt II   105086- 63738  K
  2418.0583    41342.934    15000     Pt I     13496- 54839  E
  2419.2297    41322.918       64     Pt II    32918- 74241  10
  2419.38      41320.3        120
  2419.52      41318.0         61
  2419.92      41311.1        240
  2420.8161    41295.840    18000     Pt II    23461- 64757  08
  2421.82      41278.7         46
  2422.12      41273.6         53
  2422.3192    41270.216     1500     Pt II   104090- 62820  K
  2422.9672    41259.18       420     Ne II                  C
  2423.4495    41250.97       600     Ne II                  C
  2423.88      41243.6        340     Pt II    54373- 95617  K
  2424.5504    41232.24       250     Ne II                  C
  2424.8672    41226.854    64000     Pt II    15791- 57018  05
  2425.8955    41209.380     1100     Pt II   111162- 69953  K
  2426.14      41205.2        130     Pt II   105962- 64757  K
  2426.4352    41200.215      950     Pt I     21967- 63167  N
  2426.87      41192.8         66     Ne III                 L
  2427.39      41184.0        160     Pt II    54373- 95557  K
  2427.69      41178.9         30
  2428.0333    41173.099     6400     Pt I      6567- 47740  E
  2428.0806    41172.297      950 P   Pt II   110408- 69235  K
  2428.2031    41170.220     9600     Pt I     10116- 51286  E
  2428.3122    41168.370      440     Pt I     15501- 56670  N
  2428.4520    41166.00       290     Ne II                  C
  2428.7069    41161.68       510     Ne II                  C
  2429.0969    41155.073     3700     Pt I     10131- 51286  E
  2429.3490    41150.802     7200     Pt II    29030- 70181  13
  2429.7731    41143.62        83     Ne II                  C
Character descriptor definitions (appear to right of intensity)
Code definitions

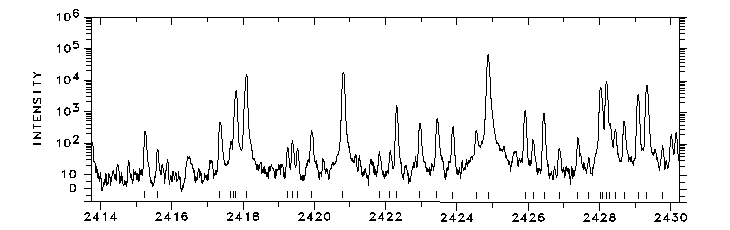

Photoelectric spectrum

2414-2430 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
