Lines and intensities in the range 2430-2446 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2430.0176    41139.48       200     Ne II                  C
  2430.1647    41136.99       220     Ne II                  C
  2430.96      41123.5         37
  2431.60      41112.7         98
  2432.04      41105.3        290     Pt II    50564- 91669  K
  2432.39      41099.4        320     Pt II   114861- 73761  K
  2433.3064    41083.882    10000     Pt II   106434- 65351  P
  2433.49      41080.8        160     Pt II    32918- 73999  AK
  2433.49      41080.8        160     Ne II                  A
  2433.54      41079.9        160     Pt II    53749- 94829  K
  2434.14      41069.8        150
  2434.2105    41068.624      430     Pt II   112433- 71364  K
  2434.4128    41065.210     1000 P
  2434.4610    41064.398    16000     Pt II    21717- 62781  09
  2435.1545    41052.705              Si I                   B
  2435.6448    41044.44       250     Ne II                  C
  2436.0764    41037.169      480     Pt II   105794- 64757  K
  2436.6887    41026.858    35000     Pt I       775- 41802  E
  2436.91      41023.1        180
  2437.69      41010.0        120
  2437.8887    41006.664      440     Pt II    58062- 99068  K
  2439.1180    40986.00       170     Ne II                  C
  2439.34      40982.3        120
  2439.42      40980.9        150     Pt I     10116- 51097  N
  2440.0608    40970.165   170000     Pt I         0- 40970  E
  2441.24      40950.4         87
  2441.4347    40947.11       130     Ne II                  C
  2442.6261    40927.139     9100     Pt II    23461- 64388  13
  2442.91      40922.4        140     Pt II   110158- 69235  K
  2443.0933    40919.314     1400     Pt II    29261- 70181  13
  2444.36      40898.1        280     Pt II   104636- 63738  K
  2444.50      40895.8        110     Pt I     18566- 59462  N
  2445.3359    40881.790     1100     Pt II    23875- 64757  11
Character descriptor definitions (appear to right of intensity)
Code definitions

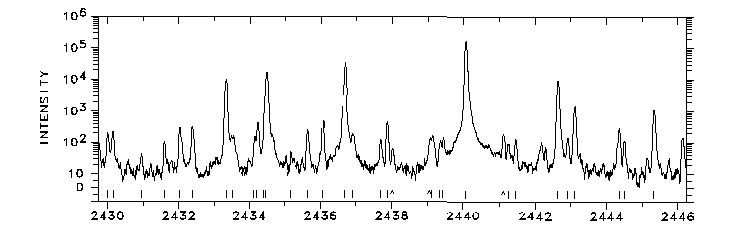

Photoelectric spectrum

2430-2446 Å

                      WAVELENGTH (ANGSTROMS) - AIR
