Spectrum of Platinum homepage

Lines and intensities in the range 2446-2462 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2446.13      40868.5        140     Pt I     21967- 62835  N
  2446.58      40861.0         57
  2449.09      40819.1        110     Pt II   115060- 74241  K
  2449.82      40807.0         47
  2450.12      40802.0        420
  2450.4390    40796.658    30000     Pt II    15791- 56587  06
  2450.9670    40787.870    11000 C   Pt I         0- 40787  E
  2451.1276    40785.198      940     Pt II   110020- 69235  K
  2451.45      40779.8         45
  2451.54      40778.3         61
  2452.30      40765.7         71
  2452.9005    40755.722      940     Pt II    58062- 98817  K
  2454.38      40731.2         28
  2454.92      40722.2         39     Ne III                 L
  2455.1380    40718.582      320     Pt II    34647- 75365  K
  2456.02      40704.0         78
  2456.59      40694.5         39
  2456.70      40692.7         38
  2458.11      40669.4         99
  2458.37      40665.1         84
  2458.47      40663.4         87
  2458.94      40655.6        170
  2459.93      40639.3         94
  2460.05      40637.3        160     Pt I     13496- 54133  N
  2461.2423    40617.60       130     Ne II                  C
  2461.35      40615.8         90
  2461.6167    40611.423      880     Pt II   105962- 65351  K
  2461.79      40608.6         18
Character descriptor definitions (appear to right of intensity)
Code definitions

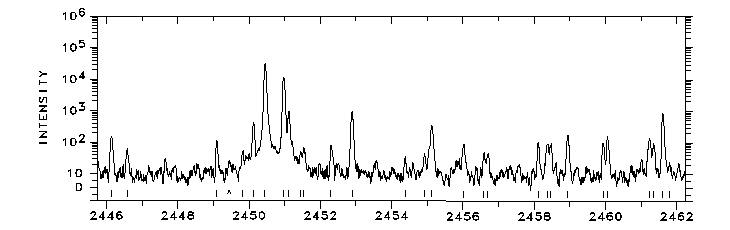

Photoelectric spectrum

2446-2462 Å

                      WAVELENGTH (ANGSTROMS) - AIR
