Spectrum of Platinum homepage

Lines and intensities in the range 2478-2494 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2478.22      40339.4         37
  2478.9449    40327.563    18000     Pt II   101517- 61190  K
  2479.0091    40326.519      550 P   Pt II    58491- 98817  K
  2480.3415    40304.858     5200     Pt II   110258- 69953  K
  2480.57      40301.1         45
  2481.35      40288.5        100
  2482.0363    40277.338     1500     Pt II    23461- 63738  08
  2482.33      40272.6        120     Pt II   109507- 69235  K
  2483.2714    40257.306              Fe I                   R
  2483.3675    40255.750     4600     Pt I     10131- 50387  N
  2484.59      40235.9        290
  2485.57      40220.1         83
  2485.9312    40214.237      290     Pt I     18566- 58780  N
  2486.0694    40212.001      580
  2486.5135    40204.819      890     Pt II   110158- 69953  K
  2486.9827    40197.236    17000     Pt II    16820- 57018  05
  2487.1685    40194.232   280000     Pt I       775- 40970  E
  2487.1685    40194.232   280000     Pt I         0- 40194  E
  2488.7321    40168.981     4000     Pt I     13496- 53665  N
  2488.8753    40166.671    15000     Pt II    24879- 65046  K
  2490.1265    40146.489    40000     Pt I       823- 40970  E
  2491.1651    40129.754      280     Pt II   114539- 74409  K
  2491.38      40126.3        300     Pt II    60986-101113  AK
  2491.38      40126.3        300     Pt II    36484- 76610  A
  2491.4659    40124.909      490     Pt II    58062- 98186  K
  2492.35      40110.7        230     Pt II   109346- 69235  K
  2492.5276    40107.819      520     Pt II    32918- 73026  12
  2493.0948    40098.695      160     Pt II    34647- 74745  11
  2493.4332    40093.252      330     Pt II   113119- 73026  K
Character descriptor definitions (appear to right of intensity)
Code definitions

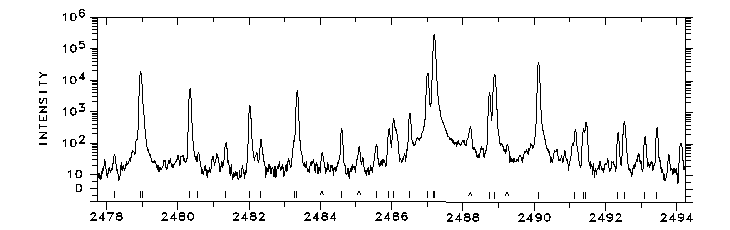

Photoelectric spectrum

2478-2494 Å

                      WAVELENGTH (ANGSTROMS) - AIR
