Spectrum of Platinum homepage

Lines and intensities in the range 2494-2510 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2494.12      40082.2        100
  2495.63      40058.0        160     Pt I     16983- 57041  N
  2495.8126    40055.032    31000     Pt I      6567- 46622  E
  2497.0968    40034.434      280     Pt I     15501- 55536  N
  2497.9137    40021.342      680     Pt II    21168- 61190  08
  2498.4996    40011.958    89000     Pt I       775- 40787  E
  2498.6806    40009.059    15000     Pt II   101199- 61190  07
  2499.2092    40000.598      730     Pt II   106434- 66434  P
  2499.86      39990.2         46
  2500.20      39984.7         47
  2500.28      39983.5         36
  2500.67      39977.2        100
  2500.81      39975.0        150     Pt I     21967- 61942  N
  2502.97      39940.5         31
  2503.3469    39934.487      440     Pt II   105962- 66028  K
  2504.0404    39923.427     1700     Pt I     10131- 50055  E
  2504.34      39918.7         39
  2504.50      39916.1         38
  2505.09      39906.7         44
  2505.9225    39893.445     5000     Pt I     10116- 50010  N
  2506.8216    39879.138      540     Pt II   110258- 70379  K
  2506.8973    39877.934              Si I                   B
  2506.96      39876.9        260
  2507.04      39875.7        150     Ne III                 L
  2507.69      39865.3        140
  2508.4973    39852.500    11000     Pt I      6567- 46419  E
  2509.53      39836.1         89     Pt II   114455- 74619  K
Character descriptor definitions (appear to right of intensity)
Code definitions

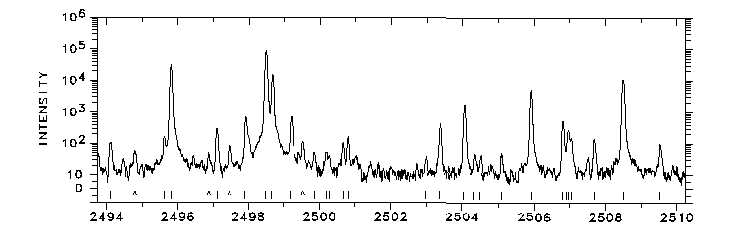

Photoelectric spectrum

2494-2510 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
