Spectrum of Platinum homepage

Lines and intensities in the range 2526-2542 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2526.15      39574.0        110     Pt II   109527- 69953  K
  2526.5031    39568.499      480     Pt II    58062- 97630  K
  2528.26      39541.0         71
  2528.5086    39537.117              Si I                   B
  2528.7336    39533.600    30000     Pt II   101199- 61665  05
  2529.0806    39528.176     1900     Pt II   105962- 66434  K
  2529.4100    39523.029     2500     Pt I     13496- 53019  E
  2529.74      39517.9         69
  2530.23      39510.2         46     Ne II                  A
  2530.23      39510.2         46     Pt II   114256- 74745  AK
  2531.32      39493.2        110
  2532.02      39482.3         37
  2532.1535    39480.21       260     Ne II                  C
  2532.89      39468.7         50
  2535.17      39433.2         67
  2535.9677    39420.834     1000     Pt I     18566- 57987  E
  2536.4932    39412.668     4500     Pt I     10131- 49544  E
  2536.89      39406.5         93
  2537.7612    39392.976      410     Pt II   109346- 69953  K
  2538.25      39385.4        180     Pt I     21967- 61352  N
  2538.5033    39381.461      360     Pt II   114127- 74745  AK
  2538.5033    39381.461      360     Ne II                  A
  2539.2067    39370.552    46000     Pt I       823- 40194  E
  2540.38      39352.4         49     Pt II    34647- 73999  K
  2540.59      39349.1         36
  2541.00      39342.8         69     Pt II   104930- 65587  K
  2541.3494    39337.359      480     Pt I     15501- 54839  N
  2541.65      39332.7         42
Character descriptor definitions (appear to right of intensity)
Code definitions

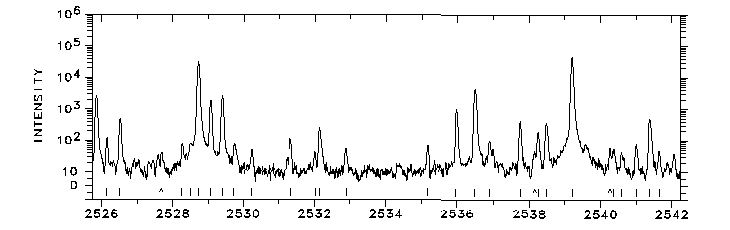

Photoelectric spectrum

2526-2542 Å

                      WAVELENGTH (ANGSTROMS) - AIR
