Spectrum of Platinum homepage

Lines and intensities in the range 2542-2558 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2542.06      39326.4         30
  2543.9076    39297.803      440     Pt II   117340- 78043  K
  2545.13      39278.9         56
  2545.71      39270.0         63     Pt II   114455- 75184  K
  2546.4674    39258.302      200     Pt I      6140- 45398  N
  2547.89      39236.4         34     Pt II   110257- 71021  K
  2548.78      39222.7         10
  2549.40      39213.1        210
  2549.4688    39212.088     3500     Pt I     13496- 52708  A
  2549.4688    39212.088     3500     Pt I     26638- 65850  AN
  2550.69      39193.3         75
  2551.20      39185.5         34
  2552.2488    39169.380     5000     Pt I     10116- 49286  E
  2554.21      39139.3        120     Pt II    58491- 97630  K
  2554.98      39127.5         79     Pt II    32237- 71364  K
  2555.8288    39114.518      110     Pt II    34647- 73761  16
  2557.00      39096.6         33
Character descriptor definitions (appear to right of intensity)
Code definitions

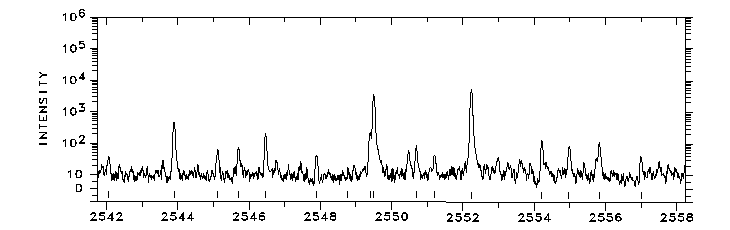

Photoelectric spectrum

2542-2558 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
