Spectrum of Platinum homepage

Lines and intensities in the range 2558-2574 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2558.67      39071.1        140     Pt II   114256- 75184  K
  2558.97      39066.5         44
  2559.45      39059.2         46     Pt I     26638- 65697  N
  2559.61      39056.7        290     Pt II    64003-103060  K
  2560.4897    39043.322      300     Pt II   110408- 71364  AK
  2560.4897    39043.322      300     Pt II    50564- 89607  AK
  2560.77      39039.0        100
  2560.88      39037.4         61
  2561.51      39027.8         67
  2561.7989    39023.37       390     Ne II                  C
  2562.1226    39018.44      1600     Ne II                  C
  2564.37      38984.2         69
  2564.45      38983.0         47
  2565.07      38973.6         39
  2565.50      38967.1         54     Pt II   109346- 70379  K
  2565.8574    38961.65       330     Ne II                  C
  2566.06      38958.6         84     Pt II   121651- 82692  K
  2566.3736    38953.814      100     Pt II   105388- 66434  17
  2567.1244    38942.422      720     Ne II
  2567.3836    38938.49       590     Ne II                  C
  2568.40      38923.1         50
  2568.5760    38920.415      950     Pt II    18097- 57018  06
  2569.16      38911.6         38
  2570.36      38893.4         90     Pt II   110258- 71364  K
  2570.57      38890.2         79     Pt II   114256- 75365  K
  2571.14      38881.6         23     Pt II    36484- 75365  K
  2571.39      38877.8        170     Pt II   113119- 74241  K
  2572.6119    38859.361     3700     Pt II    24879- 63738  08
  2572.81      38856.4        140
  2572.9020    38854.98       310     Ne II                  C
  2573.96      38839.0         35
Character descriptor definitions (appear to right of intensity)
Code definitions

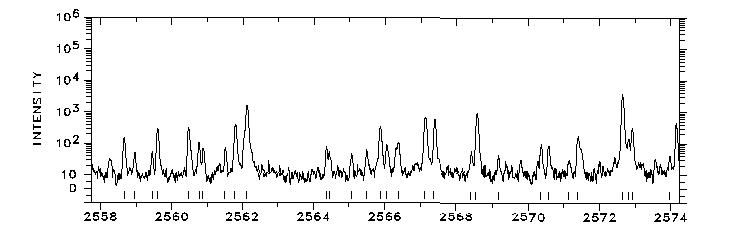

Photoelectric spectrum

2558-2574 Å

                      WAVELENGTH (ANGSTROMS) - AIR
