Spectrum of Platinum homepage

Lines and intensities in the range 2574-2590 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2574.1330    38836.40       440     Ne II                  C
  2574.4904    38831.008      680     Pt I      6567- 45398  E
  2574.76      38826.9         58     Pt II    42031- 80858  K
  2575.0945    38821.900              Al I                   F
  2575.47      38816.2         63     Pt I         0- 38815  N
  2575.87      38810.2        320
  2576.89      38794.9         46
  2577.9221    38779.32        67     Ne II                  C
  2578.3871    38772.327     1900     Pt II    27255- 66028  11
  2578.9887    38763.284      460     Pt II    41434- 80197  K
  2579.4082    38756.98       190     Ne II                  C
  2579.90      38749.6         70     Pt II    29030- 67780  K
  2580.29      38743.7        110
  2580.8102    38735.926    55000     Pt II   101517- 62781  K
  2581.0549    38732.254      230     Pt II    37877- 76610  12
  2583.1494    38700.852      210     Pt II    36484- 75184  10
  2584.48      38680.9        140
  2584.73      38677.2        130
  2586.22      38654.9        320     Pt II   109676- 71021  K
  2586.82      38645.9         27     Pt II   116689- 78043  K
  2587.7936    38631.401      230     Pt I     15501- 54133  N
  2587.886     38630.02       110     Ne II                  C
  2587.960     38628.92       110     Ne II                  C
  2589.9962    38598.550     5400     Ne III                 L
Character descriptor definitions (appear to right of intensity)
Code definitions

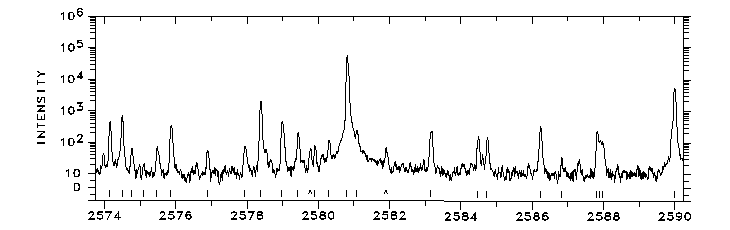

Photoelectric spectrum

2574-2590 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
