Spectrum of Platinum homepage

Lines and intensities in the range 2654-2670 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2654.3075    37663.40       130     Ne II                  C
  2654.69      37658.0         94     Pt II    41434- 79092  K
  2655.64      37644.5         42
  2655.87      37641.2         88
  2658.1694    37608.684     2200     Pt I     10131- 47740  E
  2658.6943    37601.260     2900     Pt I     13496- 51097  E
  2659.4503    37590.571   770000     Pt I         0- 37590  E
  2661.97      37555.0         56
  2662.14      37552.6         99
  2662.6599    37545.262     1400     Pt II    64003-101549  K
  2662.82      37543.0        120
  2663.20      37537.6        260
  2663.87      37528.2         36
  2664.00      37526.4         54
  2664.10      37525.0         59     Pt I     21967- 59492  N
  2664.6346    37517.439      870     Pt I     15501- 53019  E
  2664.6996    37516.525      300
  2666.72      37488.1        140     Pt II    37877- 75365  K
  2666.9122    37485.40        31     Ne II                  C
  2667.20      37481.4         39
  2667.33      37479.5        110
  2667.8866    37471.71       140     Ne II                  C
  2668.42      37464.2         34
  2668.7033    37460.244     6100     Pt II   101199- 63738  08
  2669.0563    37455.29       190     Ne II                  C
Character descriptor definitions (appear to right of intensity)
Code definitions

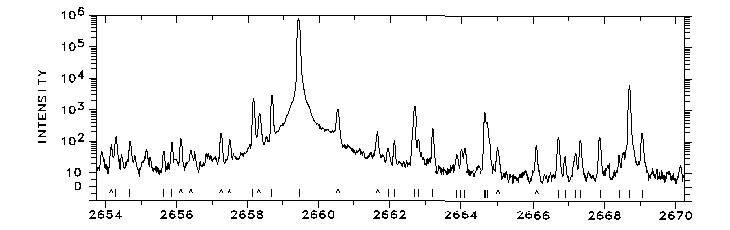

Photoelectric spectrum

2654-2670 Å

                      WAVELENGTH (ANGSTROMS) - AIR
