Lines and intensities in the range 2638-2654 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2638.0969    37894.82       260     Ne II                  C
  2638.2912    37892.03       650     Ne II                  C
  2638.5593    37888.180      710     Ne II
  2638.6418    37886.995      480
  2638.6949    37886.233      710 U
  2638.7081    37886.044     1100 P   Pt II   117493- 79607  AK
  2638.7081    37886.044     1100 P   Ne III                 AL
  2639.1678    37879.445      480     Ne III                 L
  2639.3454    37876.896    26000     Pt I      6567- 44444  A
  2639.3454    37876.896    26000     Pt I     26638- 64515  A
  2640.57      37859.3         56     Ne III                 L
  2640.6629    37858.00       220     Ne II                  C
  2641.0821    37851.990     2600     Ne III                 L
  2641.31      37848.7        220
  2641.5274    37845.61       300     Ne II                  C
  2642.39      37833.3         29     Ne III                 L
  2643.6259    37815.57       190     Ne II                  C
  2643.69      37814.7        270     Pt II   112433- 74619  AK
  2643.69      37814.7        270     Ne II                  A
  2644.0965    37808.84       710     Ne II                  C
  2644.20      37807.4        140
  2644.67      37800.6         28
  2645.05      37795.2         46     Pt II   114256- 76461  K
  2645.3682    37790.666     1900     Pt I     13496- 51286  E
  2645.6438    37786.729      620     Ne II
  2645.93      37782.6        180     Pt II   116689- 78906  K
  2646.1739    37779.16       140     Ne II                  C
  2646.8804    37769.077   130000     Pt I         0- 37769  E
  2648.06      37752.3        130
  2648.89      37740.4         58
  2649.10      37737.4         47
  2650.8524    37712.487   430000     Pt I       823- 38536  E
  2651.2572    37706.73       720     Ne II                  C
  2652.5953    37687.71       250     Ne II                  C
  2653.25      37678.4        170     Pt II   112433- 74754  K
Character descriptor definitions (appear to right of intensity)
Code definitions

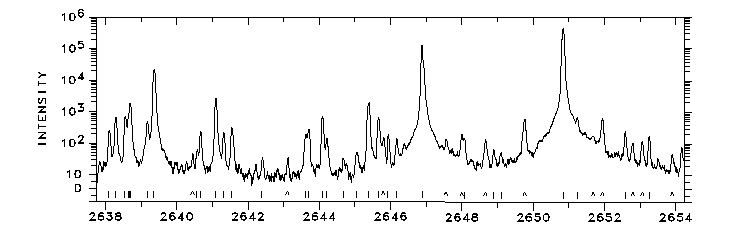

Photoelectric spectrum

2638-2654 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
