Spectrum of Platinum homepage

Lines and intensities in the range 2622-2638 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2623.0193    38112.633     1100     Pt II   121651- 83538  K
  2623.1070    38111.36      1200     Ne II                  C
  2623.4567    38106.28       250     Ne II                  C
  2625.14      38081.8        130     Pt II    64003-102086  AK
  2625.14      38081.8        130     Pt II    60986- 99068  AK
  2625.3264    38079.143     5100     Pt II    13329- 51408  06
  2625.9859    38069.58       290     Ne II                  C
  2626.68      38059.5         64
  2627.3883    38049.262     1600     Pt I     13496- 51545  E
  2628.0269    38040.016   270000     Pt I       775- 38815  E
  2629.40      38020.2        110
  2629.7211    38015.51      1000     Ne II                  C
  2629.8858    38013.13      2000     Ne II                  C
  2631.24      37993.6         68     Pt II   114455- 76461  K
  2631.9686    37983.05       260     Ne II                  C
  2632.11      37981.0         43     Pt I     26638- 64619  N
  2634.10      37952.3         69
  2634.8852    37941.009      640     Pt II    24879- 62820  08
  2635.42      37933.3         69
  2635.68      37929.6         26     Ne III                 L
  2636.0734    37923.907     2200 S   Ne II
  2636.9466    37911.35       140     Ne II                  C
Character descriptor definitions (appear to right of intensity)
Code definitions

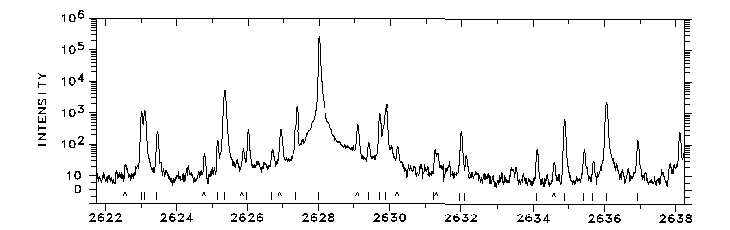

Photoelectric spectrum

2622-2638 Å

                      WAVELENGTH (ANGSTROMS) - AIR
