Spectrum of Platinum homepage

Lines and intensities in the range 2606-2622 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2606.02      38361.2        240     Pt I     21967- 60328  N
  2606.57      38353.1         38
  2607.1001    38345.339     1300     Pt II   111371- 73026  K
  2607.92      38333.3         80
  2608.0449    38331.449      260     Pt II    27255- 65587  A
  2608.0449    38331.449      260     Ne II                  A
  2609.5560    38309.253      420     Pt II   110258- 71948  K
  2610.0069    38302.636     5000     Ne III                 L
  2610.3051    38298.26       140     Ne II                  C
  2611.4088    38282.075      360     Ne III                 L
  2612.50      38266.1         35     Pt I     26638- 64904  N
  2612.76      38262.3        180
  2613.09      38257.4         72     Pt I     13496- 51753  N
  2613.4164    38252.669     3700     Ne III                 L
  2613.98      38244.4         75
  2614.4727    38237.215      410     Ne III                 L
  2614.60      38235.4        250     Pt I     10116- 48351  N
  2614.73      38233.5         60     Pt I     16983- 55216  N
  2615.8502    38217.080     2600     Ne III                 L
  2616.13      38213.0         40     Pt II   109527- 71314  K
  2616.3865    38209.247      710     Pt II   110158- 71948  K
  2616.7471    38203.982     2900     Pt II    23461- 61665  07
  2617.17      38197.8        400     Pt II   110146- 71948  K
  2617.59      38191.7         22     Pt II   112433- 74241  K
  2618.12      38183.9        170
  2618.25      38182.1        140     Pt II   105962- 67780  K
  2619.5353    38163.322      600     Pt I     15501- 53665  AN
  2619.5353    38163.322      600     Pt II   109527- 71364  AK
  2619.5674    38162.854     6700     Pt I      6567- 44730  E
  2619.72      38160.6        110     Pt II    43737- 81897  K
  2620.5386    38148.71       350     Ne II                  C
  2620.9986    38142.016      230     Pt II    32237- 70379  19
  2621.3906    38136.312      600     Pt II   111162- 73026  K
  2621.4754    38135.079      290     Pt II    36484- 74619  11
Character descriptor definitions (appear to right of intensity)
Code definitions

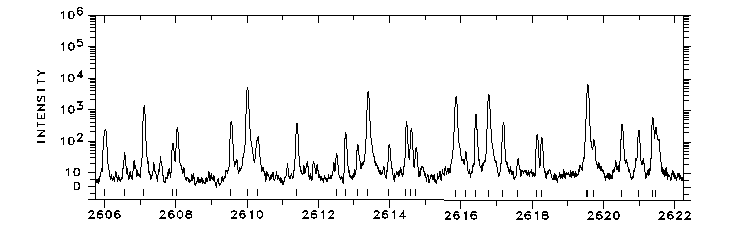

Photoelectric spectrum

2606-2622 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
