Spectrum of Platinum homepage

Lines and intensities in the range 2750-2766 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2750.1408    36351.027              Fe I                   R
  2750.24      36349.7         37
  2750.63      36344.6         19
  2750.75      36343.0         24
  2752.48      36320.1         34     Pt II   109346- 73026  K
  2752.87      36315.0        230
  2753.22      36310.4         57     Pt II   104090- 67780  K
  2753.7613    36303.237     1800     Pt I     10116- 46419  E
  2753.8531    36302.027    12000     Pt I     10131- 46433  E
  2754.19      36297.6        330
  2754.9122    36288.071    45000     Pt I     10131- 46419  E
  2756.06      36273.0         81
  2756.6186    36265.61     31000     Ne II                  C
  2757.18      36258.2        290     Pt II   110258- 73999  K
  2757.2786    36256.929     2400     Pt II   117340- 81083  K
  2757.56      36253.2         39
  2757.69      36251.5        290     Pt I     15501- 51753  N
  2758.04      36246.9        170
  2758.1983    36244.840      360     Pt II   109676- 73431  K
  2758.88      36235.9         69     Pt II    64003-100239  K
  2759.07      36233.4        120
  2759.29      36230.5         48
  2759.47      36228.1        150
  2759.83      36223.4         80
  2760.01      36221.1         99
  2760.30      36217.2        160
  2760.57      36213.7         23
  2760.71      36211.9         57
  2761.32      36203.9         24
  2762.31      36190.9         38
  2762.9217    36182.88     39000     Ne II                  C
  2763.2173    36179.010      980 H   Pt II    24879- 61058  08
  2763.89      36170.2         44
  2764.1709    36166.530     5800     Pt II   110408- 74241  AK
  2764.1709    36166.530     5800     Pt II   101517- 65351  AK
  2764.47      36162.6         51
  2764.6067    36160.829      740     Ne III                 L
  2764.81      36158.2        370     Pt II   110158- 73999  K
  2765.59      36148.0         83
  2765.66      36147.1        130     Pt II   110146- 73999  K
  2765.96      36143.1        230     Ne III                 L
Character descriptor definitions (appear to right of intensity)
Code definitions

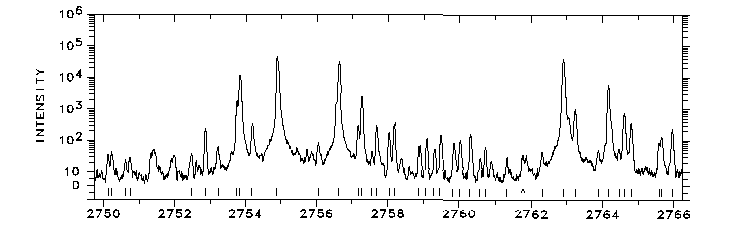

Photoelectric spectrum

2750-2766 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
