Spectrum of Platinum homepage

Lines and intensities in the range 2766-2782 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2766.35      36138.0        220
  2766.6534    36134.080     1900     Pt I     21967- 58101  N
  2766.9444    36130.279     1300     Ne III                 L
  2768.65      36108.0         43
  2768.94      36104.2        160     Pt II    41434- 77538  K
  2769.8332    36092.599    11000     Pt I      6567- 42660  E
  2770.5747    36082.94      5500     Ne II                  C
  2771.6594    36068.819   150000     Pt I       775- 36844  E
  2772.67      36055.7        220     Pt II   106434- 70379  K
  2772.8253    36053.654     2700     Pt I     10116- 46170  E
  2773.2372    36048.299     7600     Pt I     13496- 49544  E
  2773.5903    36043.710     1000     Pt I     15501- 51545  E
  2773.9918    36038.494     6500     Pt I     10131- 46170  E
  2774.1959    36035.843      840     Pt I     16983- 53019  N
  2774.7838    36028.208     7900     Pt II    24879- 60907  09
  2775.0515    36024.733      520     Ne I
  2775.6679    36016.734     1000     Pt II   110258- 74241  K
  2776.24      36009.3         43     Pt II   105962- 69953  K
  2776.76      36002.6         72     Pt II   114455- 78452  K
  2777.6274    35991.326     5000     Ne III                 L
  2778.2204    35983.645              Fe I                   R
  2778.69      35977.6         32     Pt II   111162- 75184  K
  2779.16      35971.5        370     Pt II   112433- 76461  K
  2779.69      35964.6        110
  2779.9025    35961.872      500     Ne III                 L
  2780.0249    35960.289    11000     Ne II                  G
  2780.76      35950.8        130     Pt II   121651- 85700  K
  2781.91      35935.9         56
Character descriptor definitions (appear to right of intensity)
Code definitions

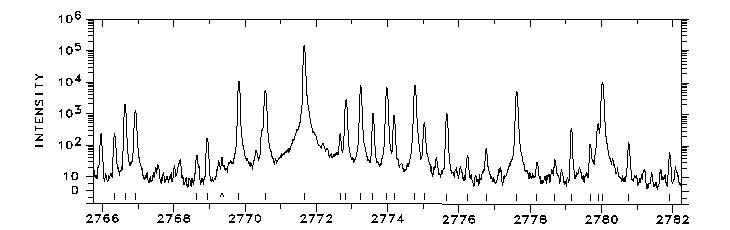

Photoelectric spectrum

2766-2782 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
