Lines and intensities in the range 2910-2926 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2910.0599    34353.493    25000     Ne II                  G
  2910.4075    34349.389    20000     Ne II                  G
  2910.83      34344.4        110
  2911.1372    34340.78      1100     Ne II                  C
  2911.48      34336.7        530
  2911.8588    34332.27       170     Ne II                  C
  2912.2515    34327.641    23000     Pt I     10116- 44444  E
  2912.7692    34321.540      600     Pt I     21967- 56288  N
  2913.1735    34316.777     3200     Ne I                   G
  2913.2445    34315.940     3600     Pt I     10116- 44432  E
  2913.5386    34312.477    24000     Pt I     10131- 44444  E
  2914.11      34305.7        240     Pt II    43737- 78043  K
  2915.1200    34293.864      980     Ne II                  G
  2915.40      34290.6        110     Ne III                 L
  2915.78      34286.1         49     Ne III                 L
  2916.2029    34281.13       850     Ne II                  C
  2918.7487    34251.23       240     Ne II                  C
  2919.07      34247.5        100
  2919.3402    34244.291     8800     Pt I     13496- 47740  E
  2921.2203    34222.252      800     Pt I     64379- 30156  N
  2921.3792    34220.391    10000     Pt I      6567- 40787  E
  2921.6217    34217.55       490     Ne II                  C
  2921.9574    34213.62       210     Ne II                  C
  2924.39      34185.2         32     Ne III                 L
  2924.9582    34178.520     1800     Pt II   112433- 78254  K
  2925.6169    34170.825     7000     Ne II                  G
Character descriptor definitions (appear to right of intensity)
Code definitions

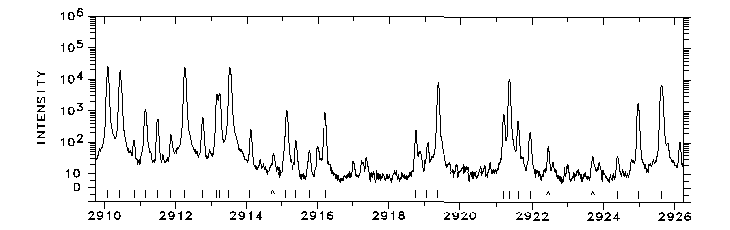

Photoelectric spectrum

2910-2926 Å

                      WAVELENGTH (ANGSTROMS) - AIR
