Spectrum of Platinum homepage

Lines and intensities in the range 2926-2942 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2926.91      34155.7        370     Pt I     64312- 30156  N
  2927.64      34147.2        110     Pt II    41434- 75581  K
  2927.7843    34145.53       170     Ne II                  C
  2928.1044    34141.798     1800     Pt I     18566- 52708  E
  2928.4406    34137.878      690     Pt II    95803- 61665  09
  2929.3257    34127.564      620     Ne I
  2929.7894    34122.163   610000     Pt I         0- 34122  E
  2930.7847    34110.576     4400     Pt I     64267- 30156  N
  2931.61      34101.0        400     Pt II    48591- 82692  K
  2932.1079    34095.182      900     Ne II                  G
  2932.7252    34088.006     2900     Ne I                   G
  2933.7138    34076.52       970     Ne II                  C
  2933.9707    34073.536      170     Pt II   105388- 71314  21
  2934.66      34065.5         34     Pt II   105086- 71021  K
  2935.2626    34058.54       510     Ne II                  C
  2935.59      34054.7        110
  2936.61      34042.9        490     Pt I     15501- 49544  N
  2936.9037    34039.510              Fe I                   R
  2937.21      34036.0        840     Pt II    58491- 92526  K
  2937.9421    34027.479     3800     Pt II   113119- 79092  K
  2938.8101    34017.430     6000     Pt I     21967- 55984  N
  2939.14      34013.6         35     Pt II   105962- 71948  K
  2940.39      33999.2        130     Pt I     68121- 34122  N
  2940.6481    33996.168     1300     Ne II                  G
  2941.12      33990.7        380
  2941.34      33988.2        120     Pt II   117340- 83352  K
  2941.98      33980.8        140     Pt II   112433- 78452  K
Character descriptor definitions (appear to right of intensity)
Code definitions

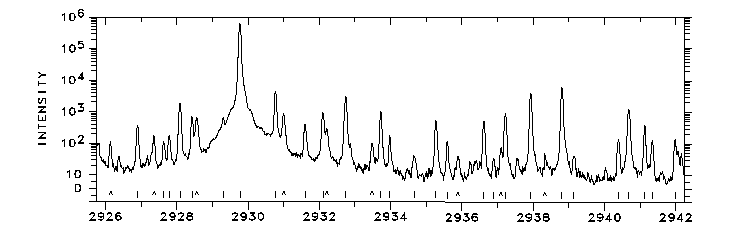

Photoelectric spectrum

2926-2942 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
