Spectrum of Platinum homepage

Lines and intensities in the range 3038-3054 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3038.8196    32897.941     1100     Pt II   109507- 76610  K
  3039.5855    32889.651   100000     Ne II                  G
  3040.8930    32875.511     3000     Pt II    96614- 63738  11
  3041.2085    32872.100      830     Pt I     21967- 54839  E
  3042.6318    32856.724  1200000 C   Pt I       823- 33680  E
  3044.0878    32841.009    26000     Ne II                  G
  3045.5563    32825.174    30000     Ne II                  G
  3045.94      32821.0        210     Ne I
  3046.79      32811.9        130
  3047.21      32807.4        340     Pt II    41434- 74241  K
  3047.5569    32803.627    91000     Ne II                  G
  3048.66      32791.8        120
  3050.18      32775.4        230
  3050.4724    32772.276     1800     Ne II                  G
  3050.7662    32769.12       560     Ne II                  C
  3050.97      32766.9        200     Pt I     65387- 32620  N
  3052.54      32750.1         72     Pt II   112433- 79683  K
Character descriptor definitions (appear to right of intensity)
Code definitions

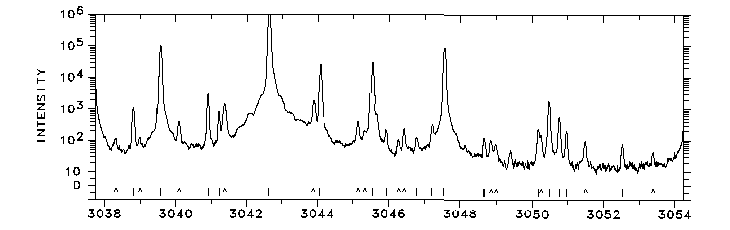

Photoelectric spectrum

3038-3054 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
