Lines and intensities in the range 3022-3038 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3022.8401    33071.841     1500     Pt I     16983- 50055  N
  3024.18      33057.2        410
  3024.2929    33055.954      480     Pt I     10131- 43187  E
  3024.88      33049.5         80
  3025.05      33047.7        430     Pt I     26638- 59686  N
  3025.23      33045.7        130     Pt II    46046- 79092  K
  3025.5458    33042.266      790     Pt I     21967- 55009  N
  3026.3266    33033.742      710     Pt I     15501- 48535  E
  3027.0151    33026.228    68000     Ne II                  G
  3028.7000    33007.856     8100     Ne II                  G
  3028.8633    33006.076    57000     Ne II                  G
  3029.7112    32996.84       380     Ne II                  C
  3030.3209    32990.201     1200     Ne I
  3030.7876    32985.122    31000     Ne II                  G
  3030.9941    32982.874     3400     Pt II    95803- 62820  12
  3031.13      32981.4        180     Pt II   104930- 71948  K
  3032.35      32968.1         67
  3034.3397    32946.51      1100 U   Ne II                  C
  3034.4609    32945.193   190000     Ne II                  G
  3035.32      32935.9       1100     Pt II   105962- 73026  K
  3035.9216    32929.343    81000     Ne II                  G
  3036.4425    32923.694    30000     Pt I     13496- 46419  E
  3036.6237    32921.73       750     Ne II                  C
  3036.84      32919.4        710     Pt II   111371- 78452  K
  3036.97      32918.0        160     Pt II   109527- 76610  K
  3037.7192    32909.858    62000     Ne II                  G
Character descriptor definitions (appear to right of intensity)
Code definitions

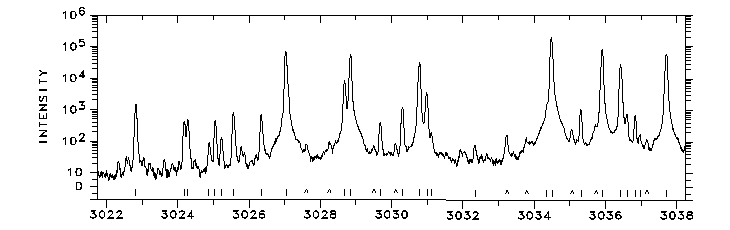

Photoelectric spectrum

3022-3038 Å

                      WAVELENGTH (ANGSTROMS) - AIR
